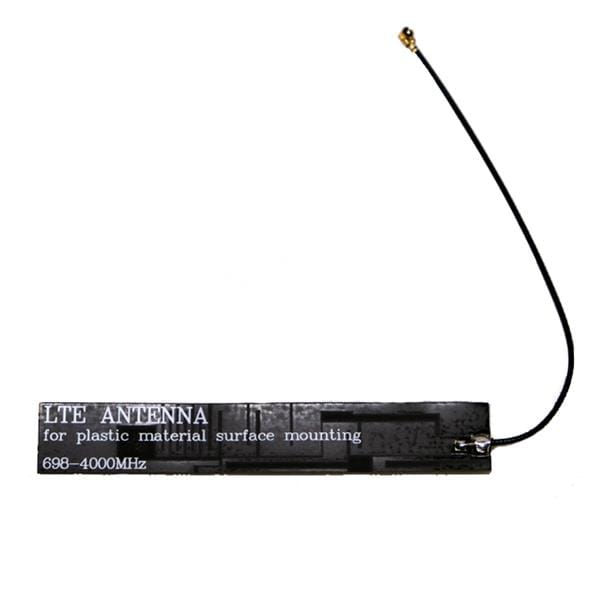

Abracon AFC8513U4GS-0100S Passive Antenna Internal/Embedded Flexible Adhesive Mount IPEX (F)

Gain: 5 dBi

VSWR: 3

Style: I-Bar Flex

Width: 13.8 mm

Height: 0.2 mm

Length: 85 mm

Impedance: 50 Ohms

Cable Type: 100 mm RF1.13

Application: M2M, Weareables, Set Top Boxes, Transportation, Home Automation, Smart Metering, Smart City

Cable Length: 100 mm

Polarization: Linear

Power Rating: 5 W

Mounting Style: Adhesive Mount

Number of Bands: 1 Band

Center Frequency: 2.349 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 4 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Protocol - Sub GHz: IoT

Antenna Connector Type: IPEX-1 Female

Protocol - GPS, GLONASS: GNSS

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 4G/5G, Cellular (NBIoT, LTE)
