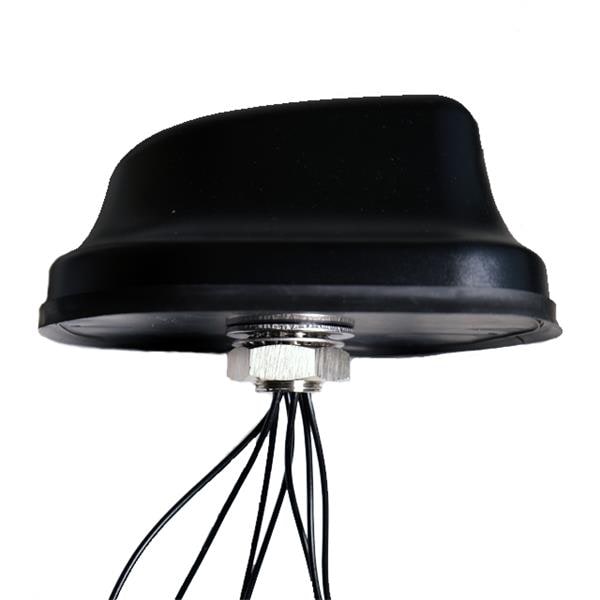

Abracon AECR1808A20S-3000S MIMO GNSS+(4x 5G MIMO) + (2x WIFI MIMO) antenna

Gain: 4 dBi, 4 dBi, 3 dBi

VSWR: 4, 2.5, 2

Style: Dome

Width: 182 mm

Height: 85 mm

Length: 189 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 3 M LMR-100 x 7

Application: M2M, Smart City, Telematics, Transportation, Smart Agriculture, Geolocation, Tracking

Cable Length: 3 m

Polarization: Linear, RHCP

Power Rating: 10 W

Mounting Style: Direct / Permanent Mount

Electrical Type: Active

Number of Bands: 4 Band

Center Frequency: 3.3 GHz, 2.44175 GHz, 5.4125 GHz, 1.583549 GHz

Mechanical Style: Module

Maximum Frequency: 6 GHz

Minimum Frequency: 600 MHz

Termination Style: Connector

Protocol - Sub GHz: IoT

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: BEIDOU, GLONASS, GNSS, GPS

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE)
