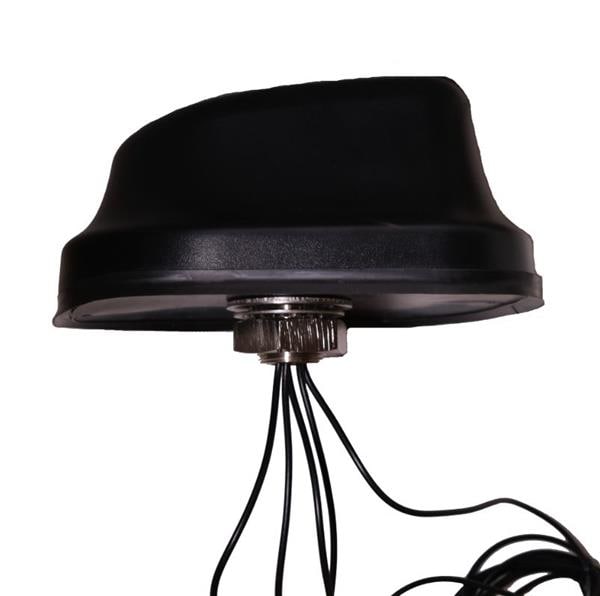

Abracon AEACBK189085-MLWFGL5 Modules AM/FM/GPS/WIFI/LTE MIMO COMB ANT

Gain: 30 dB

VSWR: 2, 2.5, 3

Width: 182 mm

Height: 85 mm

Length: 189 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: RG-174

Cable Length: 3 m

For Use With: 4G/LTE/3G/2G/GSM Apllications, IoT and Industrial IoT

Polarization: Linear, RHCP

Mounting Style: Screw Mount

Number of Bands: 9 Band

Maximum Frequency: 5.925 GHz

Minimum Frequency: 520 kHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: GPS

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE)
