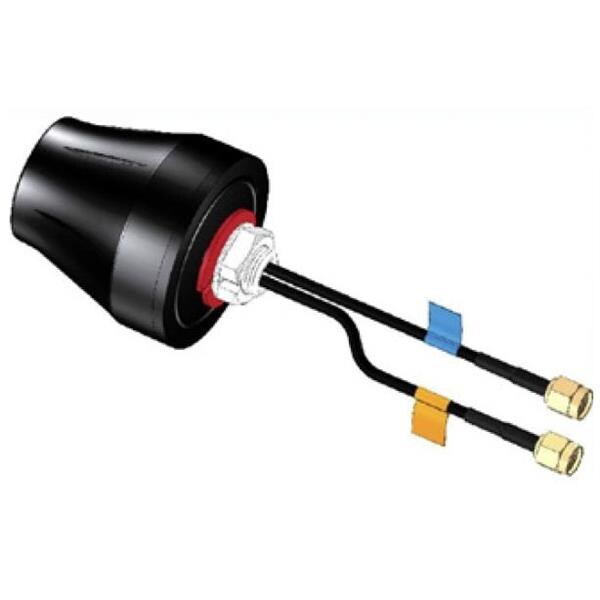

Abracon AEACBK050048-C2LG MIMO LTE/GPS SCREW MOUNT COMBO ANT

Gain: 2 dBi, 28 dB

VSWR: 1.5, 2.0, 3.0

Style: Dome

Width: 50 mm

Height: 48 mm

Length: 48 mm

Diameter: 50 mm

Bandwidth: 1580.42 MHz

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 3 M RG174 x 2

Application: Telematics, M2M, Geolocation, Tracking, Transportation, Agriculture, Smart City

Unit Weight: 218.380 g

Cable Length: 3 m

Polarization: Linear, RHCP

REACH - SVHC: Details

Mounting Style: Direct / Permanent Mount

Electrical Type: Active

Number of Bands: 3 Band

Center Frequency: 1.57542 GHz, 829 MHz, 2.2 GHz

Mechanical Style: Module

Maximum Frequency: 2.69 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Protocol - Sub GHz: IoT

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: GNSS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM
