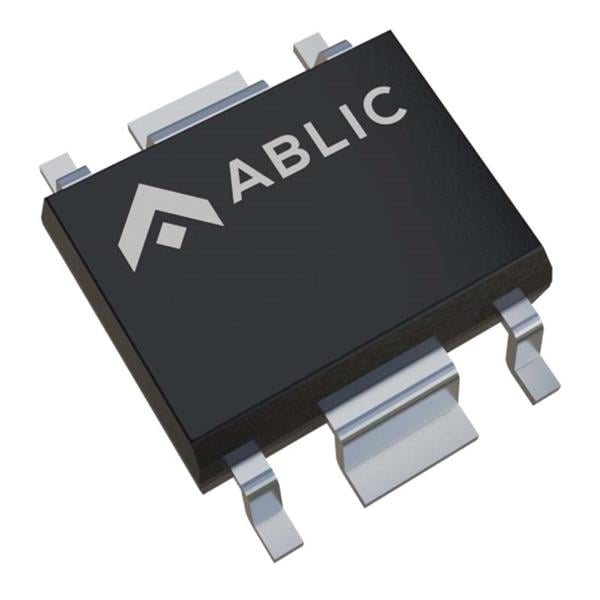

ABLIC S-1212D33-E6T1U LDO Voltage Regulators
ManufacturerABLIC(View more products from this manufacturer)
ModelS-1212D33-E6T1U
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Polarity: Positive
Output Type: Adjustable
Mounting Style: SMD/SMT
Output Current: 250 mA
Output Voltage: 3.3 V
Dropout Voltage: 800 mV
Line Regulation: 0.01 %V
Number of Outputs: 1 Output
Input Voltage - Max: 36 V
Input Voltage - Min: 3 V
Operating Supply Current: 6.5 uA
Voltage Regulation Accuracy: 2 %
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
PSRR / Ripple Rejection - Typ: 45 dB
