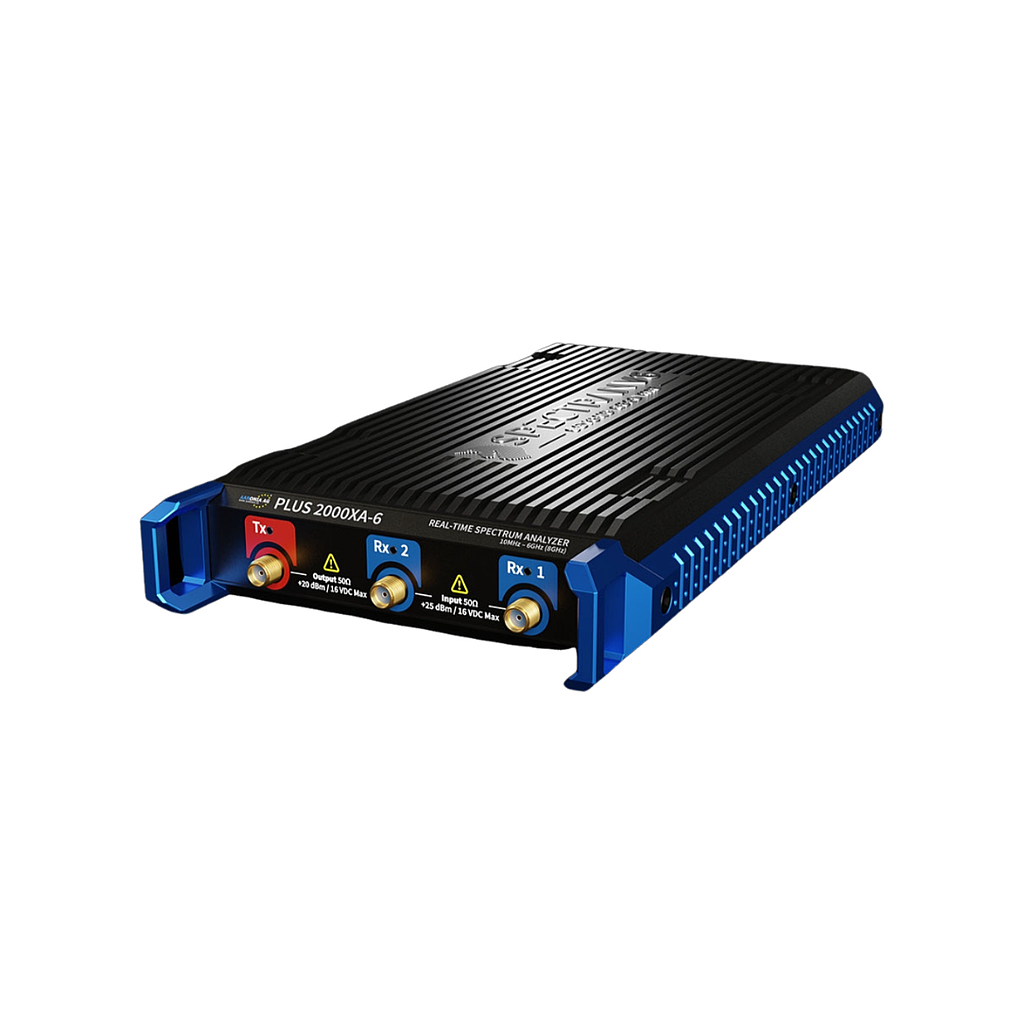

AARONIA SPECTRAN V6 PLUS 2000XA-6 Real-Time Spectrum Analyzer (160 MHz, 730/1100 GHz/s, 2 Rx & 1 Tx)

RTBW: 160 MHz (opt. 245 MHz**) I/Q

Speed: 730/1100 GHz/s

I/Os: 2 Rx & 1 Tx

Frequency range: 10 MHz to 6 | 8 GHz

Real-time bandwidth Rx: Up to 245 MHz I/Q – via 2 x USB

Real-time bandwidth Tx: 120 MHz I/Q

POI: Up to 97 ns (FFT-based), 10ns (direct I/Q-based)

Max. power Rx: +23 dBm

Max. power Tx: +20 dBm

DANL(internal pre-amp on): Typ. -170 dBm/Hz

Amplitude accuracy (typ.): Typ. +/- 0.5 dB (compensated by FIR filter)

USB streaming connection: One or two USB 3.0 (USB 3.1 Gen1; USB 3.2 Gen1)

USB bandwidth (2 x USB 3.0): Up to 784 MBytes/s sustained throughput to PC

Frequency reference accuracy: 0.5 ppm (5 ppb via OCXO option)

RBW (resolution bandwidth): 62 mHz to 200 MHz

Measurement units: Over 20 (e.g. dBm, dBμV, V/m, A/m, W/m², dBμV/m, W/cm²)

Detector: Min, Max, AVG, Peak, QPeak

Attenuator range: 50 dB / 70 dB (0,5 dB steps)

Traces: Over 20 (e.g. ACT, AVG, MAX, MIN, QPEAK)

Measurement modes: True IQ or Power/Frequency data

Trigger: Cursor, Measurement, Density

ADC: Dual 2GSPS 16 Bit

DAC: 2GSPS 14-Bit (16-Bit via oversampling)

GPS: GPS/QZSS, GLONASS, BeiDou and Galileo (concurrent reception)

GPS synchronisation: +/- 10ns timestamping in each data packet

External frequency reference input: typ. 10MHz, 3,5VRMS into 50 Ohm (SMB-connector)

FPGA: XC7A200T-2

DSP processing: 930 GMACs

SDRAM: 2 GB

Temperature range (operation): 0 °C to +50 °C (extended -40 to +75 °C)

Dimensions: 210 x 115 x 30 mm

Weight: 850 g

Power: USB 3.2 Gen 1 Type-C PD 3.0

Power consumption: Typical 15 W
