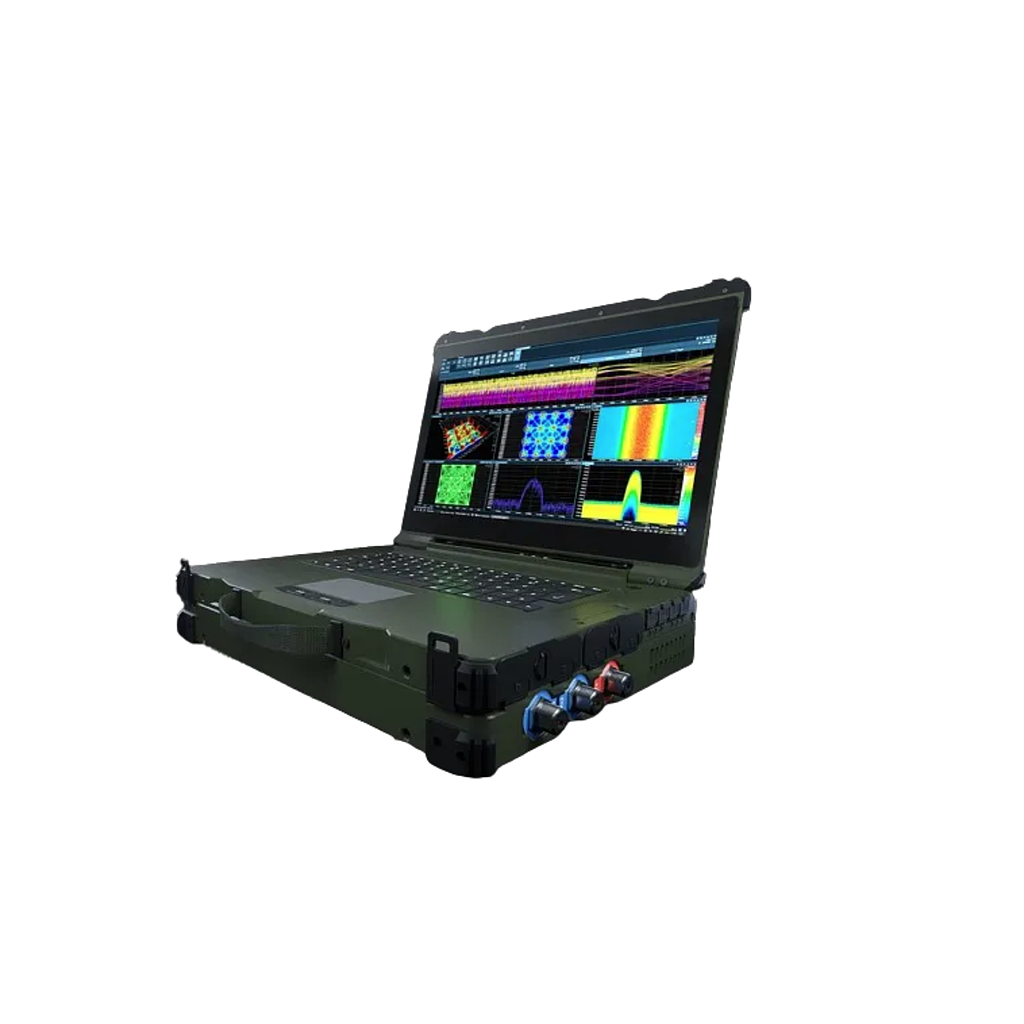

AARONIA SPECTRAN V6 MIL 2000MA-6 Real-Time Spectrum Analyzer (10 MHz-6 GHz; 730/1100 GHz/s)

Connectors: 2 x Rx; 1 x Tx

Realtime bandwidth: 160 / 245 MHz Rx; 80 /120 / 245 MHz Tx

Sweep speed: 730/1100 GHz/s

DANL: -170 dBm/Hz

SSD recording storage: 8 TB (expandable)

Specifications (Analyzer)

Frequency range: 10 MHz to 6 GHz (opt. 8 GHz)

Real-time bandwidth Rx: 80 MHz / 120 MHz / 160 MHz (opt. 245 MHz I/Q rate) (depends on MIL version)

Real-time bandwidth Tx: 120 MHz I/Q gapless streaming

POI (with 245 MHz option): 97 ns (FFT-based), 10ns (direct I/Q-based)

Max. power Rx: +23 dBm

Max. power Tx: +20 dBm

DANL(internal pre-amp on): Typ. -170 dBm/Hz

Amplitude accuracy (typ.): Typ. +/- 0.5 dB (compensated by FIR filter)

Frequency reference accuracy: 0.5 ppm (5 ppb via OCXO option)

RBW (resolution bandwidth): 62 mHz to 200 MHz

Measurement units: Over 20 (e.g. dBm, dBμV, V/m, A/m, W/m², dBμV/m, W/cm²)

Detector: Min, Max, AVG, Peak, QPeak

Attenuator range: 50 dB / 70 dB (0.5 dB steps)

Traces: Over 20 (e.g. ACT, AVG, MAX, MIN, QPEAK)

Measurement modes: True IQ or power/frequency data

ADC: Dual 2GSPS 16 Bit

DAC: 2GSPS 14-Bit (16-Bit via oversampling)

Specifications (Laptop)

RAM: 64 GB RAM

Display: 15.6“ Full HD 1920 x 1080, sunlight readable (300 cd/m²), anti-glare with LED backlight

Battery: 2x Li-ion polymer 10.8V/6900 mAh batteries; Standard power supply 230 V, opt. vehicle adapter

Operating temperature: -20° to +60° C

Storage temperature: -40° to +70° C

Dimensions: 392 x 300 x 42.5 mm (with rubber corners)

Weight: 9.5 kg

Relative humidity:95% relative humidity, non-condensing

Power supply AC input: 100 - 240 V, 50 - 60 Hz

DC output: 19 V, 10.5 A max.

Frequency range: 10 MHz to 6 GHz (opt. 8 GHz)

Real-time bandwidth Rx: 80 MHz / 120 MHz / 160 MHz (opt. 245 MHz I/Q rate) (depends on MIL version)

Real-time bandwidth Tx: 120 MHz I/Q gapless streaming

POI (with 245 MHz option): 97 ns (FFT-based), 10ns (direct I/Q-based)

Max. power Rx: +23 dBm

Max. power Tx: +20 dBm

DANL(internal pre-amp on): Typ. -170 dBm/Hz

Amplitude accuracy (typ.): Typ. +/- 0.5 dB (compensated by FIR filter)

Frequency reference accuracy: 0.5 ppm (5 ppb via OCXO option)

RBW (resolution bandwidth): 62 mHz to 200 MHz

Measurement units: Over 20 (e.g. dBm, dBμV, V/m, A/m, W/m², dBμV/m, W/cm²)

Detector: Min, Max, AVG, Peak, QPeak

Attenuator range: 50 dB / 70 dB (0.5 dB steps)

Traces: Over 20 (e.g. ACT, AVG, MAX, MIN, QPEAK)

Measurement modes: True IQ or power/frequency data

ADC: Dual 2GSPS 16 Bit

DAC: 2GSPS 14-Bit (16-Bit via oversampling)

RAM: 64 GB RAM

Display: 15.6“ Full HD 1920 x 1080, sunlight readable (300 cd/m²), anti-glare with LED backlight

Battery: 2x Li-ion polymer 10.8V/6900 mAh batteries; Standard power supply 230 V, opt. vehicle adapter

Operating temperature: -20° to +60° C

Storage temperature: -40° to +70° C

Dimensions: 392 x 300 x 42.5 mm (with rubber corners)

Weight: 9.5 kg

Relative humidity:95% relative humidity, non-condensing

Power supply AC input: 100 - 240 V, 50 - 60 Hz

DC output: 19 V, 10,5 A max.
