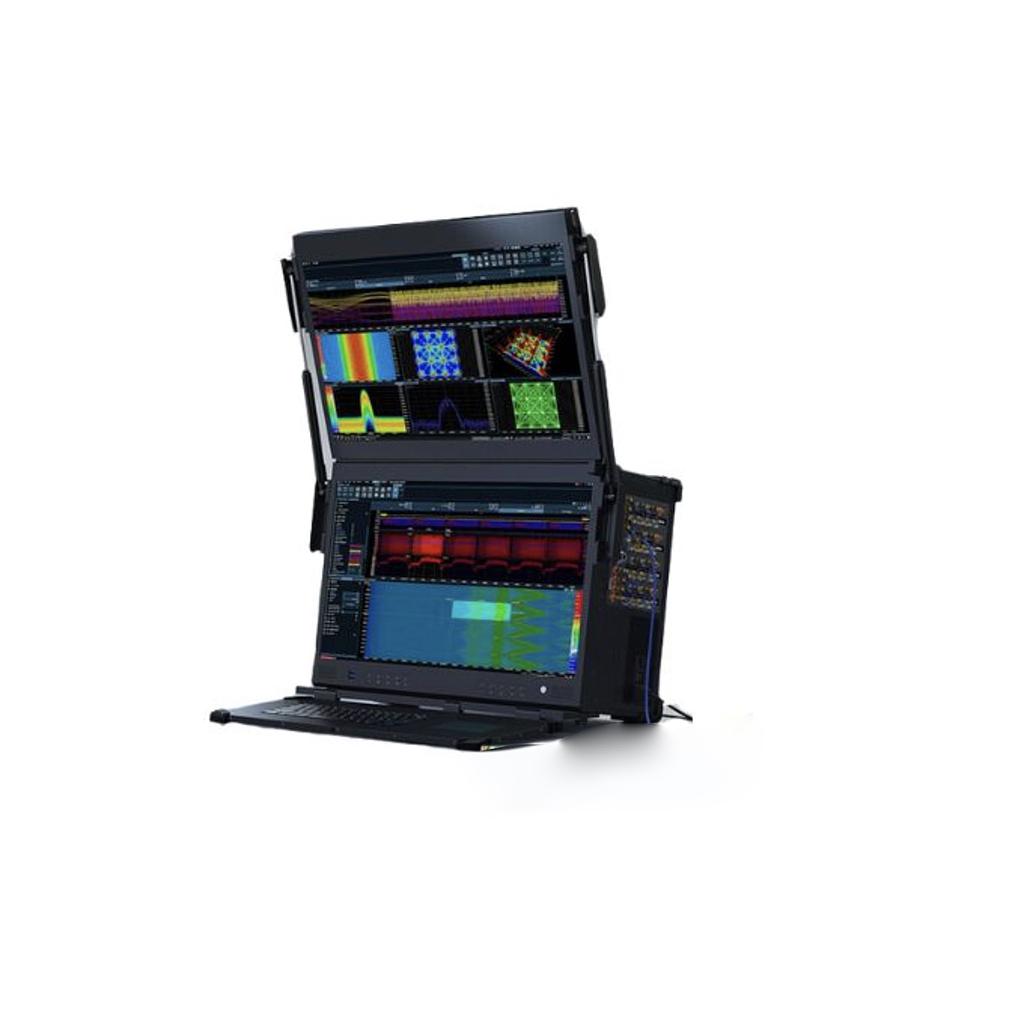

AARONIA SPECTRAN V6 CC 8000CA-6 Real-Time Spectrum Analyzer (10 MHz - 6 GHz; 640 / 980 MHz)

Real-time bandwidth Rx: 640 / 980 MHz

Real-time bandwidth Tx: 640 / 980 MHz

Sweep: 2920 / 4400 GHz/s

DANL: -170 dBm/Hz

IQ POI: 15/10 ns

Network: 2 x 100 GbE

Processor: 24 Core

RAM: 128 GB

Data Storage: 8 TB/ 24 TB

Specifications (Analyzer)

Frequency range: 10 MHz to 6 GHz (opt. 8 GHz, 1 Hz to 26 GHz in development)

POI: 97 ns (FFT-based), 10 ns (direct I/Q-based)

Max. power Rx: +23 dBm

Max. power Tx: +20 dBm

DANL (internal pre-amp on): Typ. -170 dBm/Hz

Amplitude accuracy (typ.): Typ. +/- 0.5 dB (compensated by FIR filter)

Frequency reference accuracy: 0.5 ppm (5 ppb via OCXO option)

RBW (resolution bw): 62 mHz to 57 MHz

Measurement units: Over 20 (e.g. dBm, dBμV, V/m, A/m, W/m², dBμV/m, W/cm²)

Detector: Min, Max, AVG, Peak, QPeak

Attenuator range: 50 dB / 70 dB (0.5 dB steps)

Traces: Over 20 (e.g. ACT, AVG, MAX, MIN, QPEAK)

Measurement modes: True IQ and/or Power/Frequency data

External Frequency Reference Input: Typ. 10MHz, 3.5VRMS into 50 Ohm (SMB-connector)

FPGA: Up to 4 x XC7A200T-2

Specifications (PC)

CPU: Intel® Core™ i9-13900K (24 Core)

RAM: up to 256 GB DDR5

SSD: 1 GB NVMe (OS), 4 TB (recording storage); optional expandable (up to 24 GB)

Operation System: Windows 10 PRO

Display: 2x 4K (2x 3840 x 2160 px) sunlight readable, anti reflection tempered strengthen glass

Graphics Card: Nvidia Geforce 3060 RTX

Keypad: 104-key industrial keyboard with integrated numeric keypad and touchpad

Connectors: 1x USB-C Gen 2x2 (20 Gbit/s)

1x USB-C Gen 2 (10 Gbit/s)

2x USB-A Gen 2 (10 Gbit/s)

4x USB-A Gen 1 (5 Gbit/s)

1x RJ45 2,5 GbE (opt. 2x 10 GbE, opt. 2x 100 GbE)

1x HDMI

Mainboard: Name-Brand ATX Mainboard

Operating Temperature: 0° to +50° C

Storage Temperature: -20° to +60° C

Dimensions: 620 x 270 x 400 mm

Weight: 30 kg

Relative Humidity: 10% - 90%

Power Supply: 850 W, 100 - 240 V, 50 - 60 Hz

Power Consumption: typ. < 250 W
