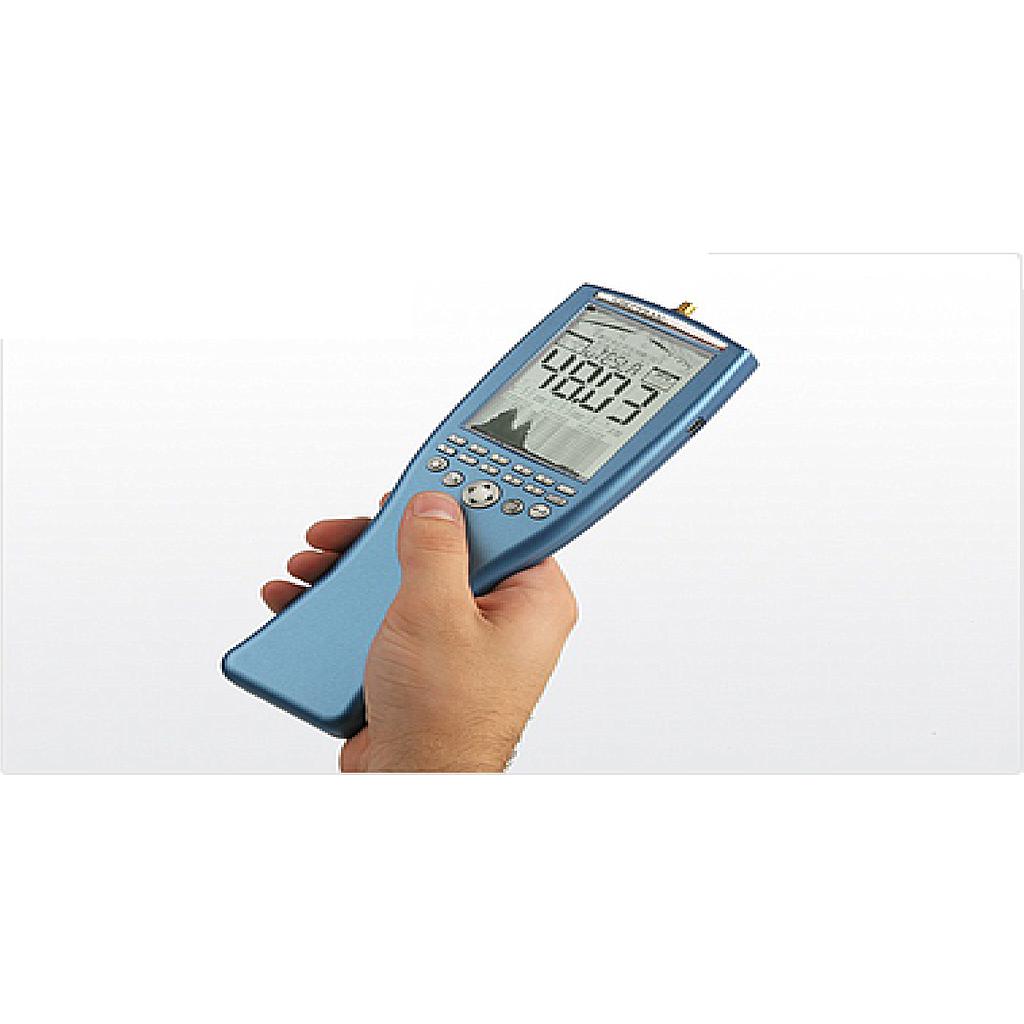

AARONIA NF-5030 Pre-Compliance EMC/EMI Spectrum Analyzer with E & H sensor (1Hz – 30Mhz)
- Frequency range:
1Hz to 1MHz (20/30MHz with Option 008/010) - Magnetic field (Tesla):
1pT to 500µT (typ. at 50Hz) expandable up to an amount of Tesla with PBS1 - Magnetic field (Gauss):
10nG to 5G (typ. at 50Hz) - Electric field:
0,1V/m to 5kV/m (typ. at 50Hz) - Analog Input:
200nV to 200mV (typ.) - Incl. Option 005 (12Bit Dual DDC Frequency Filter)
- Resolution (RBW):
0,3Hz to 1MHz (1-3-10 step) - Units: V, V/m, T, G, A/m
- Detectors: RMS, Min/Max
- Demodulator: AM, FM
- Input: High impedance SMA input (f)
- Audio: Internal speaker with volume control and 2,5mm jack
- Accuracy: 3% (typ.)
- Interface: USB 2.0/1.1
- Dimensions (L/W/D): 250x86x27 mm
- Weight: 420gr
- Warranty: 10 years
Highlights:
- Integrated 3D (isotropic) magnetic sensor
- Data Logger (64K), expandable to 1MB (Option 001)
- Exposure limit calculation according to DIN/VDE 0848
- Enhanced and much sharper LCD display
- Jog Dial for easy usage of menu operation and volume control
- Simultaneously displays frequency and signal strength
- Internet flash software updates
- Real-time remote control via USB
- Fast FFT/DFT spectrum analysis
- Hold function
- High-performance DSP (Digital Signal Processor)
- Large, high resolution multifunctional LCD
- 1/4" tripod connection
Application examples
Included in delivery
Options
Accessories
Downloads
Option:
- Option 001 (Memory expansion)
1MB Memory expansion. Strongly recommended for using the DATA LOGGER!
- Option 006 (3D earth magnetic field and static magnetic field sensor)
Offers a accurate 3D! measurement of the earth magnetic field and lots of other static magnetic fields (Gaussmeter).
- Option 009 (24BIT resolution)
Offers a ultra high resolution on static magnetic fields (ONLY in combination with Option 006).
- Option 008/010 (20MHz/30MHz frequencyrange)
Expands the frequencyrange to 20MHz.
Expands the frequencyrange to 30MHz. Not available in combination with Option 006.
- Option 025 (External 25dB Preamplifier)
Low-noise external preamplifier, 1Hz to 60MHz. Expands the measurement range of the analog input by approx. 25dB.
- Option 035 (External 35dB Preamplifier)
Low-noise external preamplifier, 1Hz to 30MHz. Expands the measurement range of the analog input by approx. 35dB.
