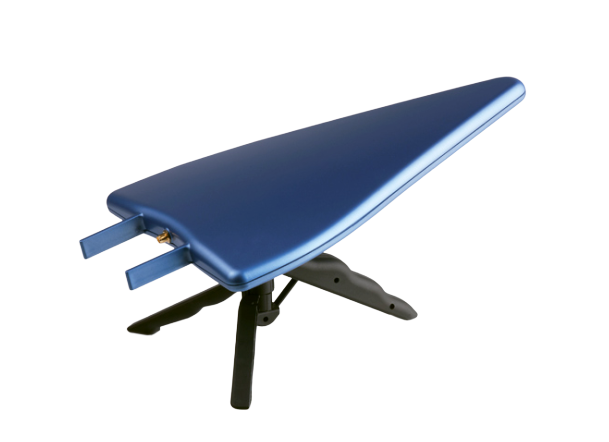

AARONIA HyperLOG 7060 Directional Antenna (700MHz-6GHz)

Design: Logarithmic-periodic
Frequency range: 700MHz-6GHz
Max. transmission power: 100 W CW (400MHz)
Nominal impedance: 50 Ohm
VSWR (typ.): <1:2
Gain (typ.): 5dBi
Antenna factor: 26-41dB/m
Calibration points: 533 (10MHz steps)
RF connection: SMA socket (18GHz) or N
socket using an adapter
Dimensions (L/W/D): (340x200x25) mm
Weight: 250gr
Included with delivery: HyperLOG 7060 antenna, typical calibration data with up to 533 calibration points (10MHz steps!), aluminum design carrycase, detachable handle with "miniature tripod" mode, Aaronia SMA toolset with over-torque protection
