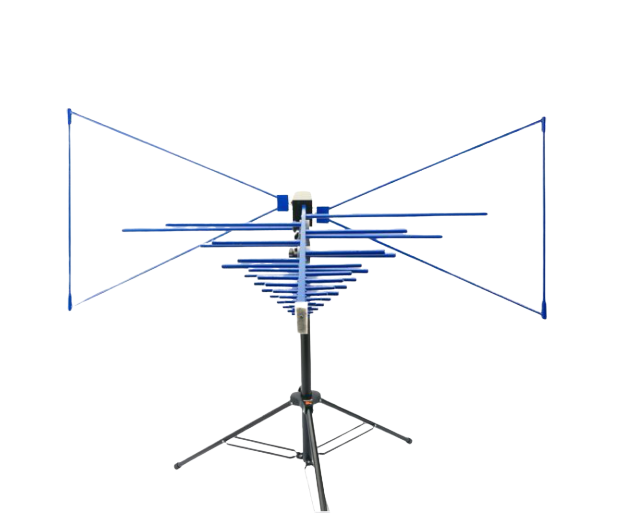

Aaronia HyperLOG 20600 EMC Reference Antennas (20MHz - 6GHz)
ManufacturerAARONIA(View more products from this manufacturer)
ModelHyperLOG 20600 EMI
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Design: Biconical & Logarithmic-Periodic (combination)
Frequency range: 20MHz-6GHz
Calibration points: 5970 (1MHz-steps)
Max. transmission power: 310W
Gain (typ.): 8dBi
VSWR (typ.): 2:1
Nominal impedance: 50 Ohms
Tripod connection: 1/4"
RF connection: N
Weight: 5,5kg
Included with delivery: HyperLOG 20600 EMI test antenna, Typical calibration data with 5970 calibration points (1MHz steps!) on CD, Heavy carrying case
Option:
- Heavy EMC Tripod
- Option 501 (1mW Roter Laser)
- Option 502 (Taktischer 150mW Power-Laser Grün)
