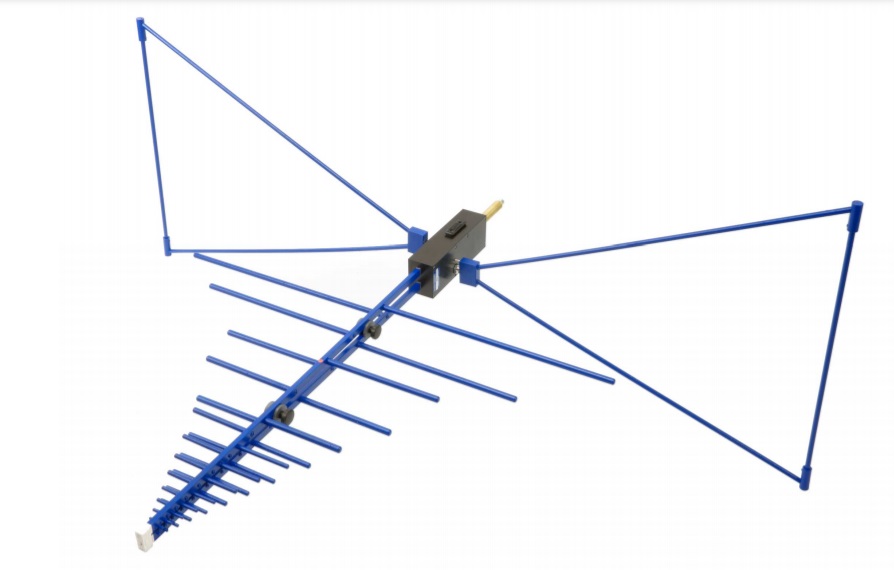

AARONIA HyperLOG 20300 EMI EMC Reference Antennas (20MHz-3GHz)
Design: Logarithmic-periodic
Frequency range: 20MHz-3GHz
Polarisation: linear vertical/horizontal
Calibration points: 2970 (1MHz-steps)
Max. transmission power: 310W
Gain (typ.): 8dBi
VSWR (typ.): 2:1
Nominal impedance: 50 Ohms
RF connection: MA socket (18GHz) or N socket using an adapter
Weight: 5,3kg
Included with delivery: HyperLOG 20300 EMI test antenna, Typical calibration data with 2970 calibration points (1MHz steps!) on CD, Heavy carrying case
Option:
- Heavy EMC Tripod
- Option 501 (1mW Roter Laser)
- Option 502 (Taktischer 150mW Power-Laser Grün)
