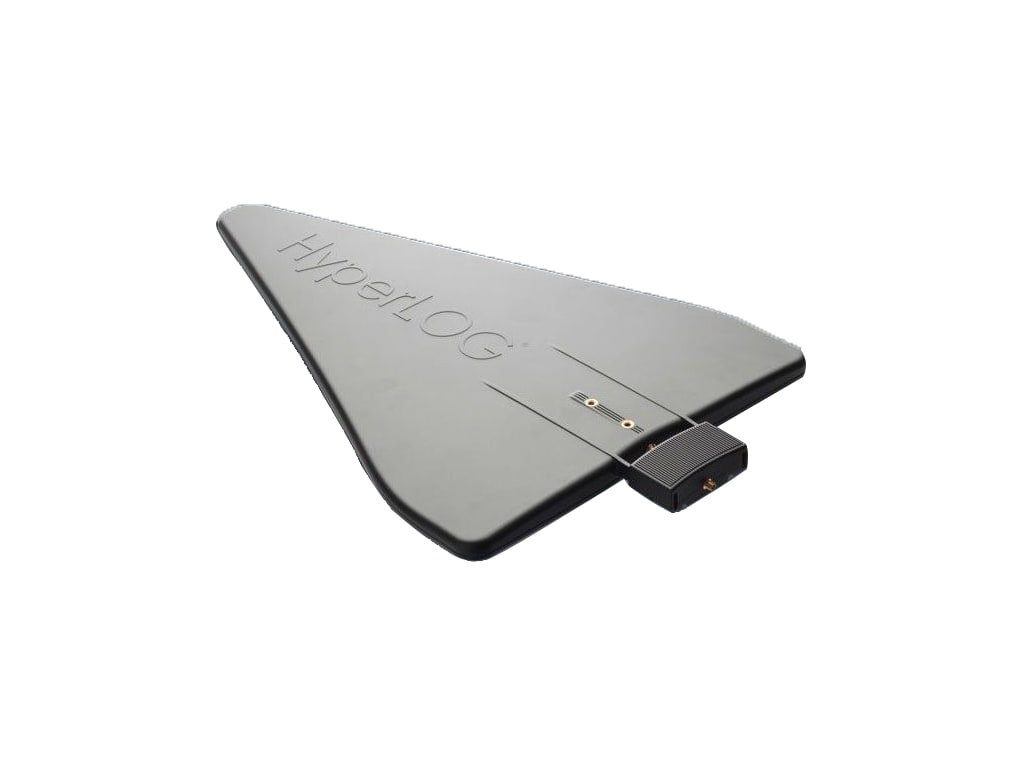

AARONIA HyperLOG PRO 70260 High performance DF Antenna (700MHz – 26.5GHz)
ManufacturerAARONIA(View more products from this manufacturer)
ModelHyperLOG PRO 70260
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Dimensions [L x W x D]: 590 x 360 x 30 mm
Weight: 1200g
Design: LPDA Hybrid
Gain (typ.): 13 dBi
RF Connection: 2.92 mm K (f)
Frequency Range: 700MHz – 26.5GHz
Nominal Impedance: 50 Ohm
Calibration Points: 1033 (25MHz steps)
VSWR (typ.): < 1.3:1
Max. Transmission Power: 100 W CW (6 GHz)
Antenna Factor: 22 – 50 dB/m
HPBW: min. 17°
