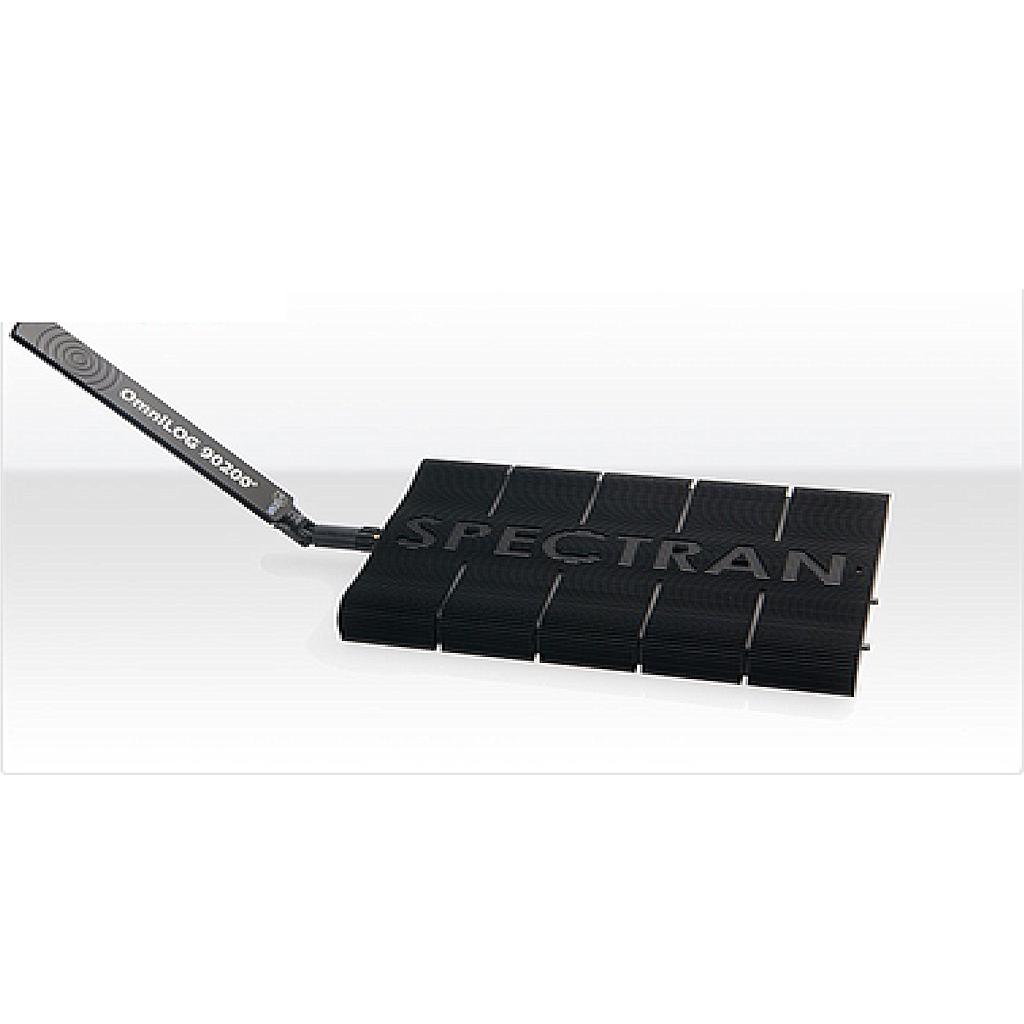

Aaronia Spectran HF-6060 V4X Remote Controlled USB Spectrum Analyzer
ManufacturerAARONIA(View more products from this manufacturer)
ModelHF-6060V4X
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
- Frequency range: 10MHz to 6GHz
- DANL: -135dBm(1Hz)
- DANL with Preamp: -150dBm(1Hz)
- Max. power at RF input: +10dBm
- Lowest sample time: 10mS
- Resolution (RBW): 3kHz to 50MHz
- Units: dBm, dBµV, V/m, A/m, W/m²
dBµV/m, W/cm² etc. - Detectors: RMS, Min/Max
- Demodulator: AM, FM
- Input: 50 Ohm SMA RF-input (f)
- Accuracy: +/- 2dB (typ.)
- Interface: USB 2.0/1.1
- Dimensions (L/W/D): 210x136x26 mm
- Weight: 1600gr
- Warranty: 10 years
Highlights:
- Exposure limit calculation and display according to DIN/VDE 0848
- Up to 100x faster sample time as V3 units
- Up to 60dB higher sensitivity as V3 units
- Low noise preamplifier (option)
- 14Bit Dual-ADC
- DDC Hardware-Filter
- 150 MIPS DSP (CPU)
- Real-time remote control via USB
- Vector (I/Q) measurement
- Real-time Peak Power Detector (option)
- Internal speaker (which can be switched off)
- Audio out for the use of PC based FFT analyzer software
- Included OmniLOG antenna
- Very thick (3mm) aluminium housing offering very good screening.
- 100% powered by the external power supply only (no battery)
- Free MAC OS, Linux and Windows software
Application examples
Included in delivery
Options
Accessories
Downloads
