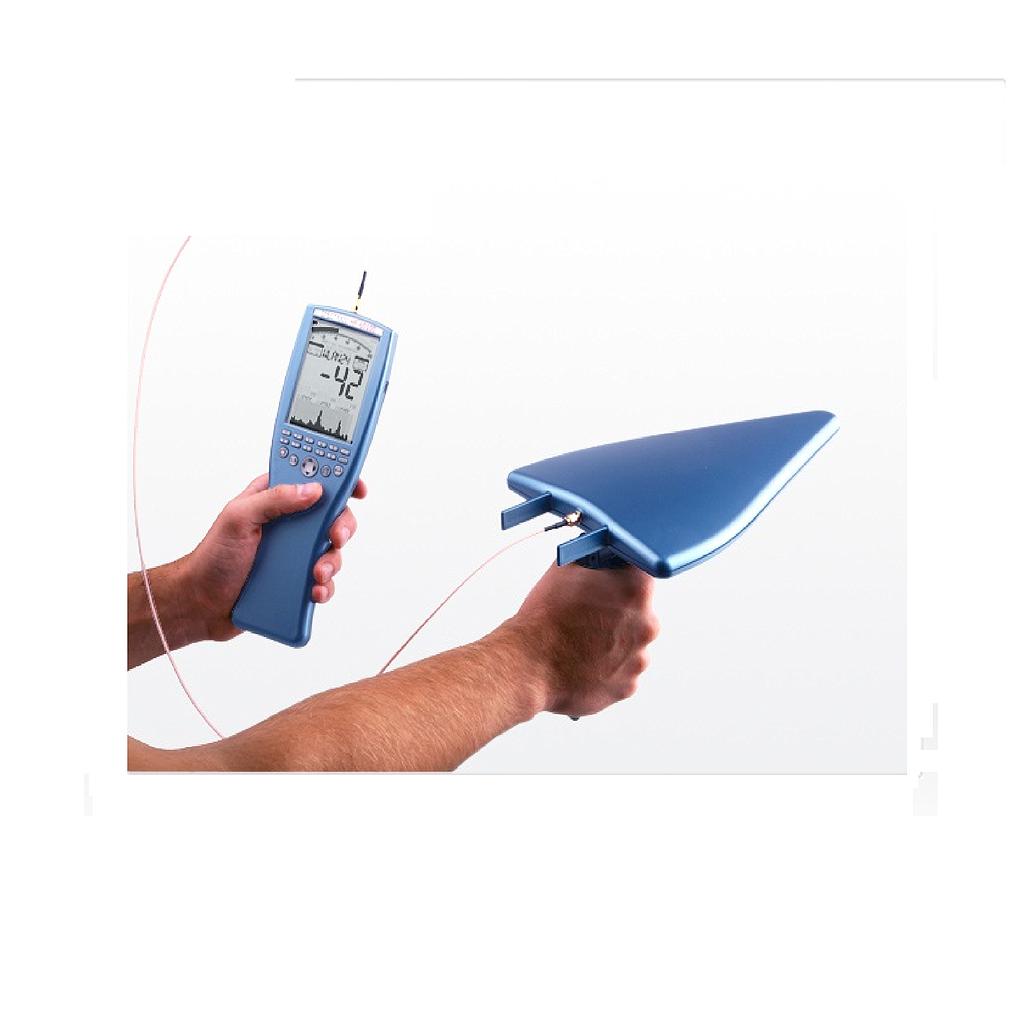

Product image

Aaronia HF-6060 V4 Portable RF Spectrum Analyzer

ManufacturerAARONIA(View more products from this manufacturer)

ModelHF-6060

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

RF frequency range: 10MHz to 6GHz
DANL: -135dBm(1Hz)
DANL with Preamp: -150dBm(1Hz)
Max. power at RF input: +10dBm
Lowest sample time: 10mS
Resolution (RBW): 3kHz to 50MHz
Units: dBm, dBµV, V/m, A/m, W/m²
(dBµV/m, W/cm² etc. via PC software)
Detectors: RMS, Min/Max
Demodulator: AM, FM
Input: 50 Ohm SMA RF-input (f)
Accuracy: +/- 2dB (typ.)
Interface: USB 2.0/1.1
Dimensions (L/W/D): 250x86x27 mm
Weight: 430gr
Warranty: 10 years

Highlights:

RF exposure limit calculation and display according to DIN/VDE 0848
Up to 100x faster sample time as V3 units
Up to 60dB higher sensitivity as V3 units
Low noise preamplifier (option)
14Bit Dual-ADC
DDC Hardware-Filter
150 MIPS DSP (CPU)
Data Logger (64K), expandable to 1MB (Option 001)
Enhanced and much sharper LCD display (compared to V3 units)
Simultaneously displays frequency and signal strength
Real-time remote control via USB
Large, high resolution multifunction LCD
Vector (I/Q) measurement
DECT & TimeSlot analyzer
Real-time RF Peak Power Detector (option)
Hold function
Included EMC directional antenna HyperLOG 7060
Free MAC OS, Linux and Windows analyzersoftware

Initiates file download Datasheet (pdf)

RF frequency range: 10MHz to 6GHz
DANL: -135dBm(1Hz)
DANL with Preamp: -150dBm(1Hz)
Max. power at RF input: +10dBm
Lowest sample time: 10mS
Resolution (RBW): 3kHz to 50MHz
Units: dBm, dBµV, V/m, A/m, W/m²
(dBµV/m, W/cm² etc. via PC software)
Detectors: RMS, Min/Max
Demodulator: AM, FM
Input: 50 Ohm SMA RF-input (f)
Accuracy: +/- 2dB (typ.)
Interface: USB 2.0/1.1
Dimensions (L/W/D): 250x86x27 mm
Weight: 430gr
Warranty: 10 years

Highlights:

RF exposure limit calculation and display according to DIN/VDE 0848
Up to 100x faster sample time as V3 units
Up to 60dB higher sensitivity as V3 units
Low noise preamplifier (option)
14Bit Dual-ADC
DDC Hardware-Filter
150 MIPS DSP (CPU)
Data Logger (64K), expandable to 1MB (Option 001)
Enhanced and much sharper LCD display (compared to V3 units)
Simultaneously displays frequency and signal strength
Real-time remote control via USB
Large, high resolution multifunction LCD
Vector (I/Q) measurement
DECT & TimeSlot analyzer
Real-time RF Peak Power Detector (option)
Hold function
Included EMC directional antenna HyperLOG 7060
Free MAC OS, Linux and Windows analyzersoftware
