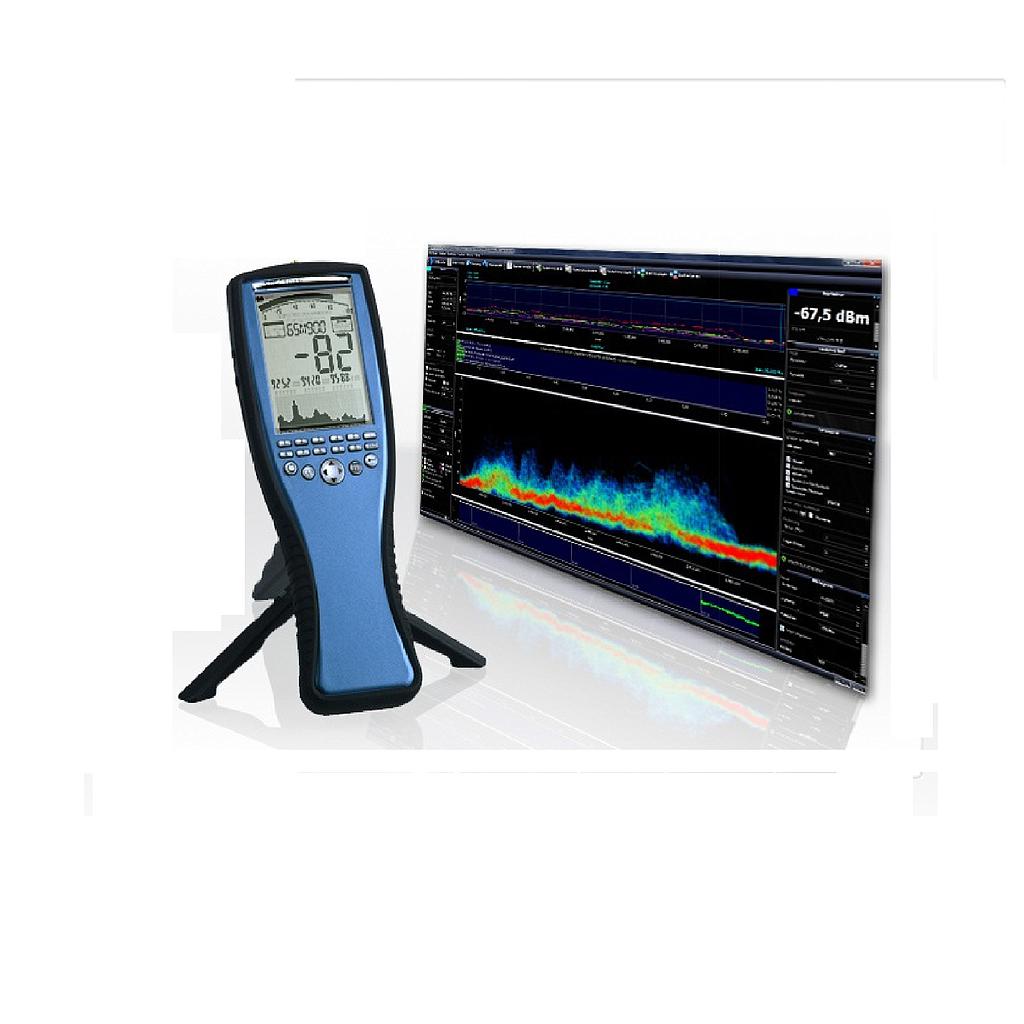

Aaronia HF-4080 V4 Handheld Spectrum Analyser (10Mhz – 8 GHz)

• Frequency range: 10MHz to 8GHz
• DANL: -145dBm(1Hz)
• DANL with Preamp: -160dBm(1Hz)
• Max. power at RF input: +10dBm
• Lowest sample time: 10mS
• Resolution (RBW): 1kHz to 50MHz
• Units: dBm, dBµV, V/m, A/m, W/m²
  (dBµV/m, W/cm² etc. via PC software)
• Detectors: RMS, Min/Max
• Demodulator: AM, FM, PM
• Input: 50 Ohm SMA RF-input (f)
• Accuracy: +/- 2dB (typ.)
• Interface: USB 2.0/1.1
• Dimensions (L/W/D): 250x86x27 mm
• Weight: 430gr
• Warranty: 10 years

Highlights:

• Very small size and low weight
• Exposure limit calculation and display according to DIN/VDE 0848
• Up to 100x faster sample time as V3 units
• Up to 70dB higher sensitivity as V3 units
• Low noise preamplifier (option)
• 14Bit Dual-ADC
• DDC Hardware-Filter
• 150 MIPS DSP (CPU)
• Data Logger (64K), expandable to 1MB (Option 001)
• Enhanced and much sharper LCD display (compared to V3 units)
• Simultaneously displays frequency and signal strength
• Real-time remote control via USB
• High resolution multifunction LCD
• Vector (I/Q) measurement
• DECT & TimeSlot analyzer
• Real-time Peak Power Detector (option)
• Hold function
• Very light EMC directional antenna HyperLOG 6080 included
• Free MAC OS, Linux and Windows software

Datasheet (pdf)

• Frequency range: 10MHz to 8GHz
• DANL: -145dBm(1Hz)
• DANL with Preamp: -160dBm(1Hz)
• Max. power at RF input: +10dBm
• Lowest sample time: 10mS
• Resolution (RBW): 1kHz to 50MHz
• Units: dBm, dBµV, V/m, A/m, W/m²
  (dBµV/m, W/cm² etc. via PC software)
• Detectors: RMS, Min/Max
• Demodulator: AM, FM, PM
• Input: 50 Ohm SMA RF-input (f)
• Accuracy: +/- 2dB (typ.)
• Interface: USB 2.0/1.1
• Dimensions (L/W/D): 250x86x27 mm
• Weight: 430gr
• Warranty: 10 years

 Highlights:

• Very small size and low weight
• Exposure limit calculation and display according to DIN/VDE 0848
• Up to 100x faster sample time as V3 units
• Up to 70dB higher sensitivity as V3 units
• Low noise preamplifier (option)
• 14Bit Dual-ADC
• DDC Hardware-Filter
• 150 MIPS DSP (CPU)
• Data Logger (64K), expandable to 1MB (Option 001)
• Enhanced and much sharper LCD display (compared to V3 units)
• Simultaneously displays frequency and signal strength
• Real-time remote control via USB
• High resolution multifunction LCD
• Vector (I/Q) measurement
• DECT & TimeSlot analyzer
• Real-time Peak Power Detector (option)
• Hold function
• Very light EMC directional antenna HyperLOG 6080 included
• Free MAC OS, Linux and Windows software
