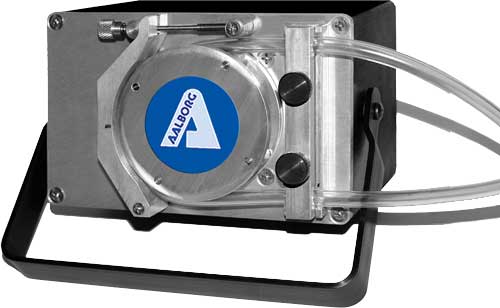

Aalborg TPU1FA1 TPU FX Fixed RPM Peristaltic Pump (Rollers: 4)

Rollers: 4

Pumping speeds: Preset to 3, 10, 20, 30, 40 or 50 RPM

Motor: AC Shaded Pole

Electrical requirement: 110 or 240 VAC

Dimensions: 6.50 in. (165 mm) WIDE x 6.57 in. (167 mm) DEEP x 4.12 in. (105 mm) HIGH excluding handle

Maximum lift, pump head: 340 in. H2O (12.3 psig)

Maximum suction, head: 350 in. H2O (12.6 psig)

Tubing sizes (inside ø ): 1/8 in., 3/16 in., 1/4 in. or 5/16 in.

Fuses: Two 2-Amp, 250 V, fast-acting, glass, 5 x 20 mm, UL-listed

Reversible flow: No

Priming function: No

Timing function: No

CE compliant: No

Motor & controls: Fixed speed motor, nominal 3 RPM, 115 VAC, no controls
