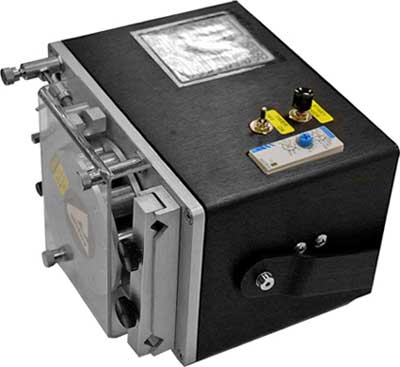

Aalborg TPU1DP0 TPU DP Dispensing Peristaltic Pump (Rollers: 4)

Rollers: 4

Pumping speeds: 10 – 60 RPM

Motor: Brushless DC

Electrical requirement: 90-264 VAC

Dimensions: 6.50 in. (165 mm) WIDE x 6.57 in. (167 mm) DEEP x 4.12 in. (105 mm) HIGH excluding handle

Maximum lift, pump head: 340 in. H2O (12.3 psig)

Maximum suction, head: 350 in. H2O (12.6 psig)

Tubing sizes (inside ø ): 1/8 in., 3/16 in., 1/4 in. or 5/16 in.

Fuses: N/A

Reversible flow: Yes

Priming function: Yes

Timing function: Yes

CE compliant: Yes

Motor & controls: Brushless DC motor, 10 – 60 RPM, RPM counter, Brake switch, Reverse Flow switch, Prime function, Dispense function (Timer)
