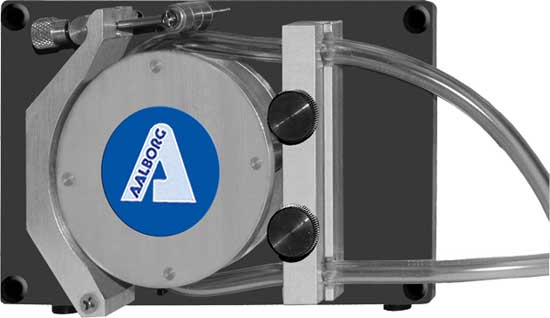

Aalborg TPU1 TPU Peristaltic Pump Head (Rollers: 4)

Rollers: 4

Pumping speeds: Speeds depend on the motor you add to the pump head

Motor: Motor (including mounting kit) available for separate purchase; factory mounting optional

Electrical requirement: N/A

Dimensions: 6.50 in. (165 mm) WIDE x 1.61 in. (41 mm) DEEP x 4.12 in. (105 mm) HIGH

Maximum lift, pump head: 340 in. H2O (12.3 psig)

Maximum suction, head: 350 in. H2O (12.6 psig)

Tubing sizes (inside ø ): 1/8 in., 3/16 in., 1/4 in.

Fuses: N/A

Reversible flow: No

Priming function: No

Timing function: No

CE compliant: Yes
