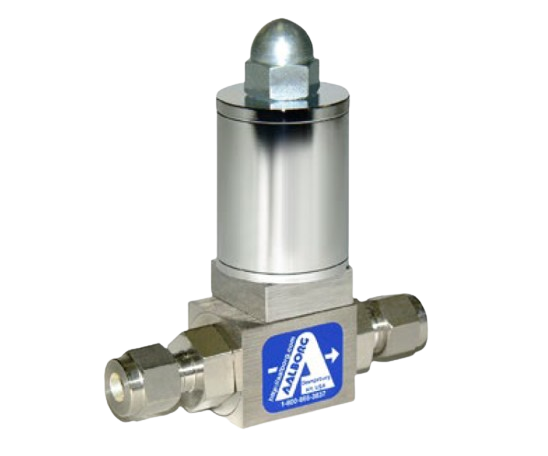

Aalborg PSV3S-VA Liquids And Gas Flow Regulators (21500 [ml/min], 0.055)

Power input: 0-30Vdc

Maximum power required: 400 mA

Type of operation: Normally closed (NC) when de-energized.

Connections: 1/4" Compression fittings optional 3/8” (1/8” with PSV1, 2 or 3).

Maximum pressure: 1000 psig (6897 kPa).

Maximum differential pressure: 50 psid (345 kPa).

Fluid temperature: 14 °F to 122 °F (-10 °C to 50 °C).

Maximum temperature (typical): 174 °F (79 °C) inside, 130 °F (54 °C) outside surface at 24Vdc.

Orifice size: 1.4 mm

Cv: 0.055

Maximum flow[ml/min]: Air: 21500; Water: 700
