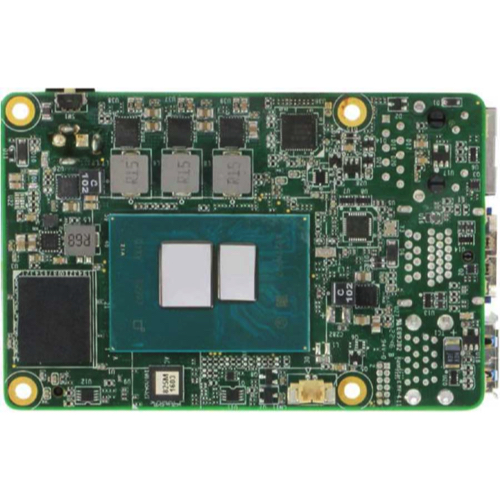

AAEON UP-ADLN97-A10-0864-VST Embedded Board (Intel N97, RAM LPDDR5 8GB)

Processor: Intel Processor N97

RAM: Dual-Channel LPDDR5 8GB

Power Supply: 12V DC-in, 5A

Ports: HDMI 1.4b / USB 3.2 Gen 2 STACK Connector x 1 (Type-A), 4-pin Front Panel x 1, 2-pin Fan Wafer x 1 (12V), 2-pin RTC Battery Wafer x 1

Graphics: Intel UHD Graphics

Storage: 64GB eMMC

USB: USB 3.2 Gen 2 (Type-A) x 3; 10-pin USB 2.0 x 2 / UART x 1

Operating System: Windows® 10 Enterprise LTSC 2021, Linux: Ubuntu 22.04 LTS / Kernel 5.15, Yocto 4.0

Dimensions: 3.34” x 2.20” (85mm x 56mm)

Weight: 0.33 lb. (0.15Kg)

Operating Temperature: 32°F ~ 140°F (0°C ~ 60°C) / 0.5 airflow, WiTAS1 -4°F ~ 158°F (-20°C ~ 70°C) with active cooler

Operating Humidity: 0% ~ 90% relative humidity, non-condensing

Certifications: CE/FCC Class A, RoHS Compliant, REACH
