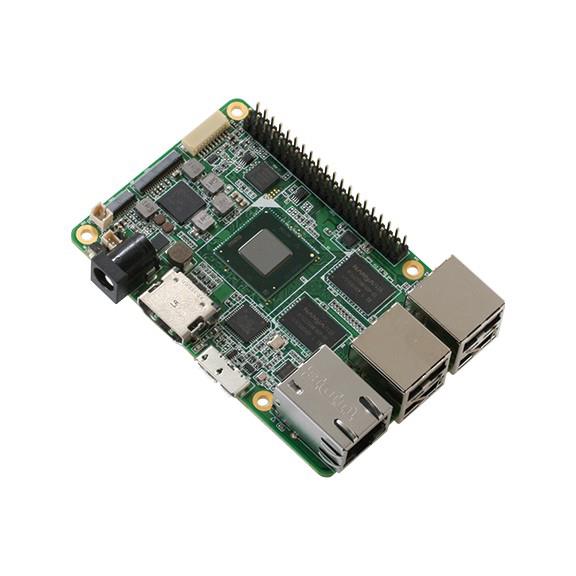

AAEON UP UP-CHT01-A20-0432-A11 Single Board Computers The UP board with x5-Z8350 CPU,4GB RAM, 32GB eMMC

Core: Atom x5-Z8350

Code Name: Cherry Trail

Frequency: 1.92 GHz

Dimensions: 85.6 mm x 56.5 mm

Memory Size: 4 GB

Memory Type: DDR3L, RAM

Cache Memory: 2 MB

Installed RAM: 4 GB

Interface Type: DSI, eDP, Ethernet, GPIO, HDMI, MIPI-CSI, UART, USB 2.0, USB 3.1

Processor Type: Atom x5-Z8350

Number of Cores: 4 Core

Processor Brand: Intel

Maximum RAM Capacity: 4 GB

On-Board Storage Size: 32 GB

On-Board Storage Type: eMMC

Battery Backup Switching: Backup Battery

Operating Supply Voltage: 5 V

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: 0 C
