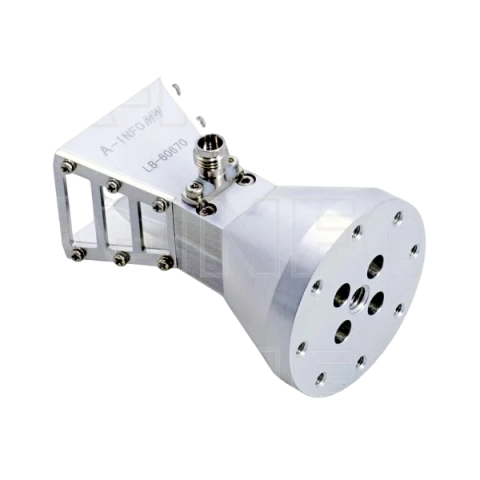

A-INFOMW LB-60670-1.85F Broadband Horn Antenna (6-67GHz, 13dB)

Frequency, Min (GHz): 6

Frequency, Max (GHz): 67

Gain, Typ (dBi): 13

Polarization: Linear

3dB Beamwidth, E-Plane, Min (Deg.): 10

3dB Beamwidth, E-Plane, Max (Deg.): 105

3dB Beamwidth, H-Plane, Min (Deg.): 9

3dB Beamwidth, H-Plane, Max (Deg.): 86

Cross Pol. Isolation, Typ (dB): 30

VSWR, Typ: 1.5:1

Impedance, (Ohm): 50

Power Handling, CW, (W): 5

Power Handling, Peak, (W): 10

Interface

Output Type: Coaxial

Connector: 1.85mm(V)

Connector Gender: Female

Mechanical Specification

Body Material: Al

Finish: Chemical Conversion Coating

Size, W (mm): 41.3

Size, H (mm): 41.3

Size, L (mm): 65

Weight, (kg): 0.1
