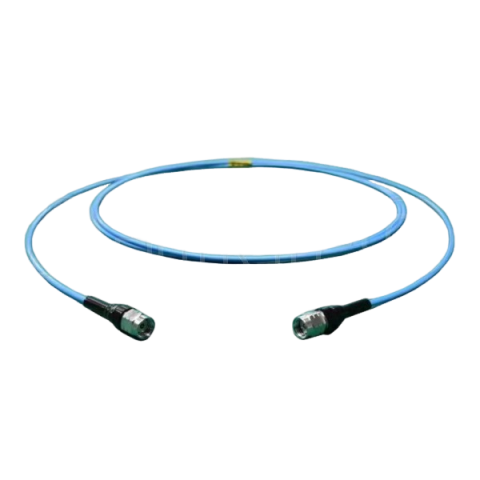

A-INFOMW 1.85M-1.85M-B010-1500 Flexible Cable Assembly (DC- 67GHz, 1.85mm Male)

Cable Type: Flexible

Frequency, Min (GHz): 0

Frequency, Max (GHz): 67

I.L., Typ (dB): 10.87

I.L., Max (dB): 11.96

VSWR, Typ: 1.40:1

VSWR, Max: 1.50:1

Phase Stability (±deg): 15

Amplitude Stability (±dB): 0.5

Impedance, (Ohm): 50

Connector 1: :1.85mm (V)

Connector 1 Gender: Male

Connector 1 Body Material: Passivated Stainless Steel

Connector 2: 1.85mm (V)

Connector 2 Gender: Male

Connector 2 Body Material: Passivated Stainless Steel

Operating Temp. Low (°C): -40

Operating Temp. High (°C): 85

Storage Temp. Low (°C): -40

Storage Temp. High (°C): 85

Cable Length, (mm): 1500

Cable Length, (inch): 59.055

Cable Outer Diameter (mm): 2.4

Cable Outer Diameter (inch): 0.094

Minimum Bending Radius (mm): 24

Minimum Bending Radius (inch): 0.95

Armored: No

Weight, (kg): 0.13

Application: General Purpose Indoor & Outdoor, Fixed
