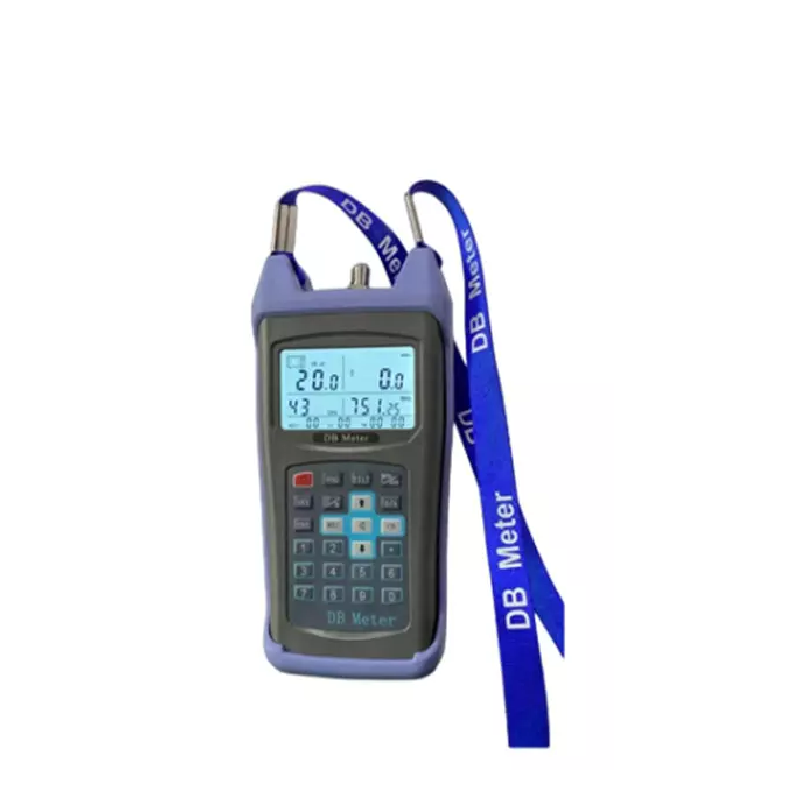

3S Telecom SLM-9802Q Handheld CATV Signal Level DB Meter (46-870MHz)

DVB-C

Range: 46-870MHz

Modulation type: DVB-C/ITU-T J.83-Annex A

Support: 16/32/64/128/256 QAM

Power level: 30dBμV～110dBμV

Accuracy: ±2dB

L band width: Can be setted by users

Symbol rate: 1MS/S～8MS/S

MER: 22dB～40dB

MER Accuracy: ±2dB

BER: 10-4～10-8 Before R - S

Resolution: 10KHz ≤30ppm

Analog CATV

Power Level: 20dBμV～120dBμV

Accuracy: ±1.5dB

Impedance: 75Ω

Others

Power Supply: 7.2V 1600mAH rechargeable Li-ion battery, AC 90～240V 50/60Hz

Charging Time: 3 ~ 4 hrs

Working Time: > 6 hrs

Dimension: 180 x 82 x 40 (mm) x100x40(mm)

Weight: 0.32kgs (battery included)

Packing List: Main unit x1pcs, power adapter x1pcs, user manual x1pcs, certification report x1pcs, hybrid adapter x2pcs
