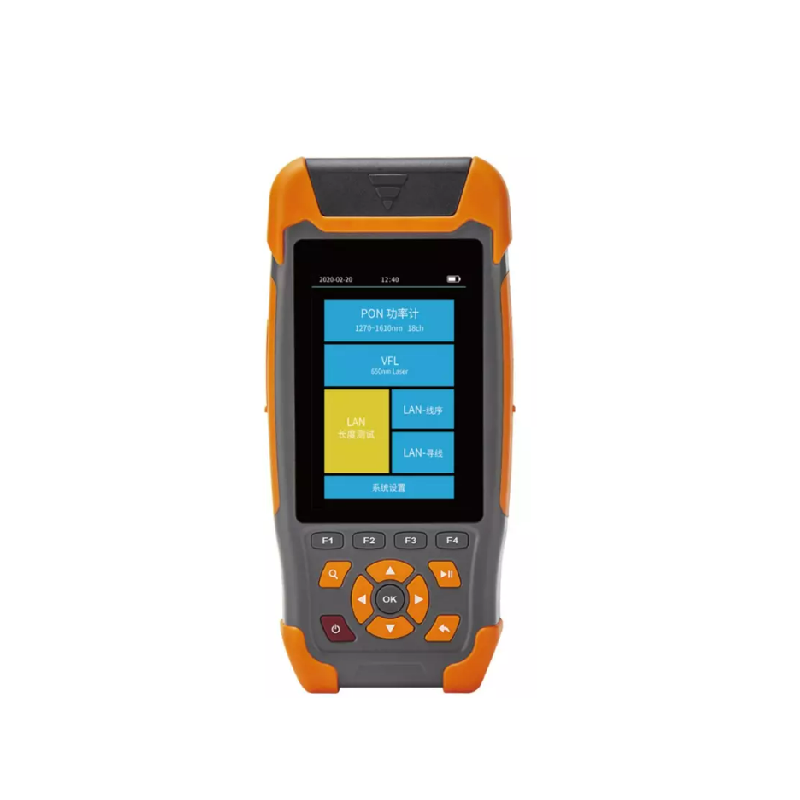

3S Telecom PPM-B Power Meter

PON module

Wavelength: 1310nm Upstream / 1490nm Downstream / 1550 Downstream

Pass Zone:1260~1360nm / 1470~1505nm/ 1535~1570nm

Measurement Range: -35~+10dBm / -40~+12dBm / -40~+25dBm

Isolation @1310nm: - / >40dB / >40dB

Isolation @1490nm: >40dB / - / >40dB

Isolation @1550nm: >40dB / >40dB / -

Uncertainty: <±0.5dB

Polarization Dependent Loss: <±0.25dB

Linearity: ±0.1dB

Through Insertion Loss: <1.5dB

Resolution: 15dBm

Connector: SC/UPC

Visual Fault Locator

Wavelength: 650±20nm

Power: 10mW

Mode: CW/1Hz/2Hz

Connector: 2.5mm universal connector

RJ45 Cable Length

Test Distance: 300m

General Information

Display: 3.5 inch TFT LCD display, high resolution 320*480

Data Interface: Micro USB

Power Supply: Lithium battery 3.7V 4000mAh, power adapter 5V DC, 2A

Battery Working Time: >12h

Weight: 350g
