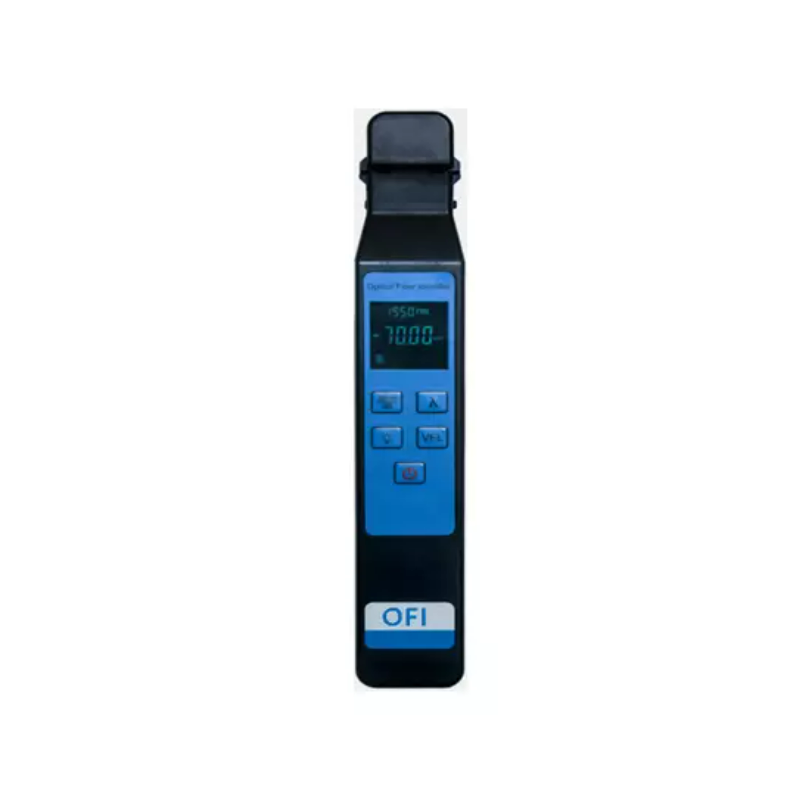

3S Telecom OFI-D Fiber Identifier (750-1700nm)

Optical Fiber Identifier Module

Identified Wavelength Range: 750-1700nm

Insertion Loss: 1.0dB

Fiber Type:＜ 3mm Fiber

Identified Signal Type: 270Hz/1KHz/2KHz

Display Type: LED

Detector Type: 1mm InGaAs

Minimum detection power:

-35dBm(1550nm)

-30dBm(1310nm)

Optical Power Meter (OPM) Module

Calibration Wavelength: 850, 1300, 1310, 1490, 1550, 1625nm

Measuring Range: -50~+26 dBm

Fiber Connector: Universal 2.5mm connector

Visual Fault Locator (VFL) Module

Wavelength: 650±10 nm

Output Power: 10mW

Fiber Connector: Universal 2.5mm connector

General Information

Display screen: TFT color screen

Power Supply: 1.5V AA x 2pcs

Operating Temperature (℃): -20～+60

Storage Temperature (℃): -30～+70

Dimension: 220 x 38 x 28mm, 145g (battery not included)

Package: Main unit, user manual, carry case
