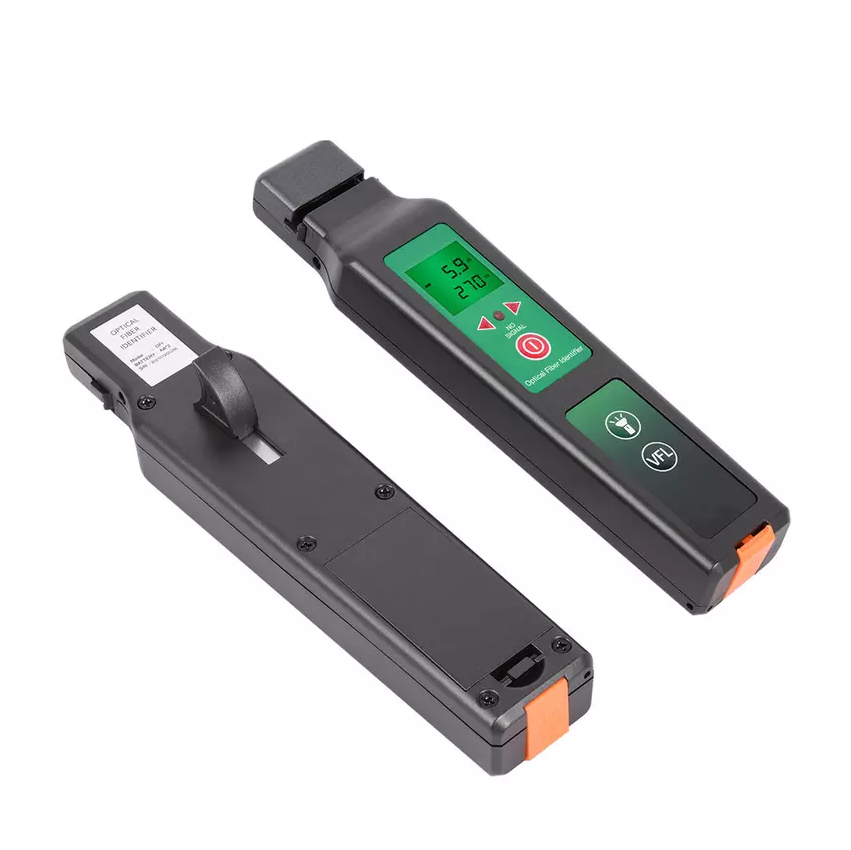

3S Telecom OFI-C Fiber Identifier (800nm~1700nm)

Wavelength Recognition Range: 800nm to 1700nm

Signal Recognition Type: CW,270 Hz ± 5%,1 kHz ± 5%,2 kHz ± 5%

Detector Type: φ1mm InGaAs 2 pcs

Adapted fiber type: Universal Holder for φ0.25(Bare Fiber),φ0.9,φ2.0,φ3.0 Cable

Signal Direction: Left & Right LED

Optical Power Reading Range: -40 dBm to 10 dBm

Signal Frequency Range: 270Hz, 1kHz, 2kHz

Power Type: AA*2

Operating Temperature Range: -10℃ to 60℃

Storage Temperature Range: -25℃ to 70℃

Dimension: 219 x 45 x 28mm

Weight: 235g

VFL Function

Power range: 10mW

Testing distance: 8-10km

Wavelength: 650nm

Laser type: LD

LED light: Support
