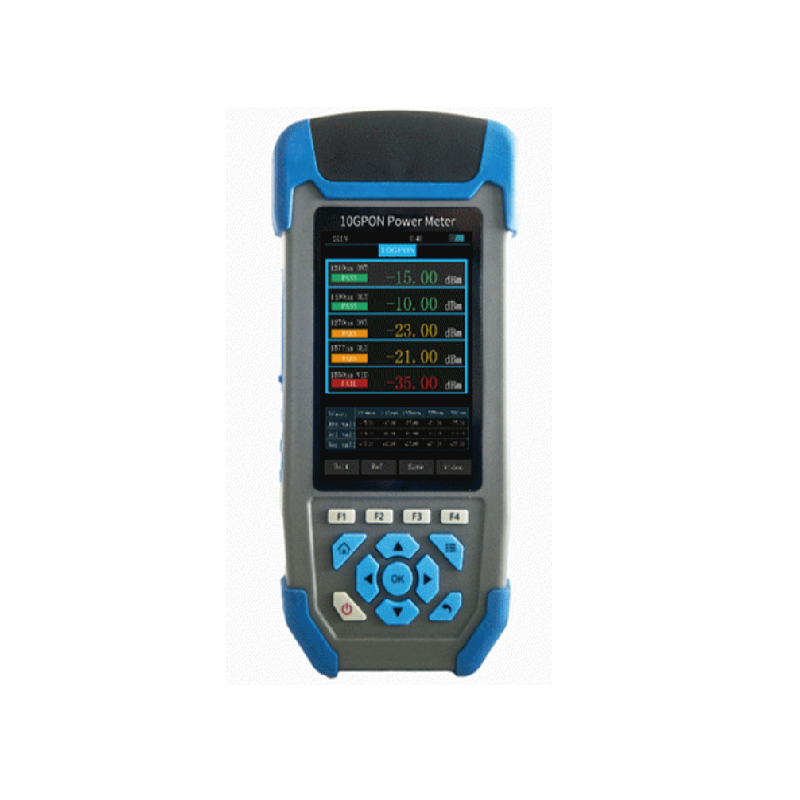

3S Telecom FOPM-G PON Power Meter (26～-50dBm)

PON Power Meter Mode

Measuring wavelength: 1270nm/ 1310nm/ 1490nm/ 1550nm/ 1577nm (can be customized)

Measuring rangedBm): +13～-40/ +13～-40/ +13～-50/ +25～-50/+10～-50

Spectral passband (nm): 1270±10/ 1310±20/ 1490±10/ 1550±10/ 1577±6

Insertion loss: ≤1.5 dB

Uncertainty: ≤0.5 dB

Interface type: (FC/SC)/APC (optional)

Display resolution: 0.01dB

Threshold settings: 10group

Data storage: 1000

Standard OPM mode

Measuring range: +26～-50 dBm

Calibration wavelength: 850/1300/1310/1490/1550/1625 nm

Uncertainty: ≤0.5dB

VFL

Wavelength: 650±10 nm

Output power: 10 mW

Modulation frequency: Lighting form, 1HZ

Others

Operating temperature: -10～+60℃

Storage temperature: -25～+70℃

Relative humidity: 0%～95%RH

Communication interface: Micro USB

Power supply: Rechargeable 3.7V lithium battery/Micro USB

Operating time: ≥20H，stand-by time ≥60H

Dimension: 188mm×88mm×44mm

Weight: 400g

Packing List: Main unit, user manual, certification, FC/SC connector, 5V power adapter, micro USB line, Data CD
