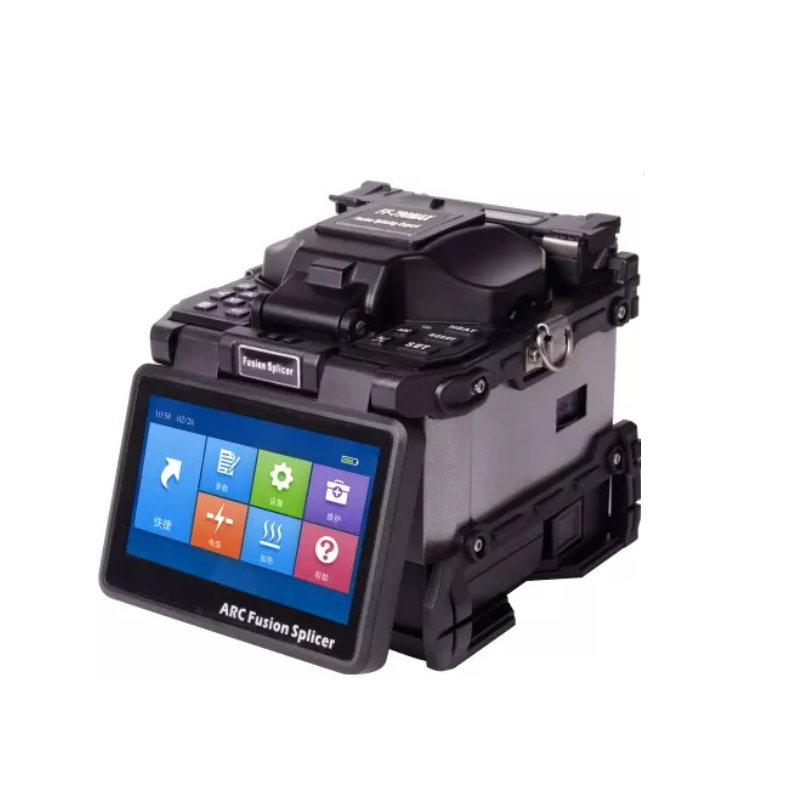

3S Telecom FOFS-60B Fiber Optic Fusion Splicing Machine

Applicable fibers: SM(ITU-T G.652/G.657),MM(ITU-T G.651), DS(ITU-T G.653),NZDS(ITU-T G.655)

Typical Splicing loss: 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)

Return loss: >60dB

Diameter of Cladding: 80 -150μm

Diameter of Coating: 160 - 900μm

Fiber Cleaved Length: 10-16mm (coating diameter< 250μm ), 16mm (coating diameter: 250-1000μm )

Auto-heating: Available

Operation Mode: Manual, Automatic

Typical splicing time: 6 seconds

Tube heating time: 16 seconds

Magnification: 250X(X or Y view), 125X(X and Y view)

Viewing Method: 2 x High resolution cameras

Display: 5.0 inch color LCD monitor

Storage of Splice Result: 4000 results

Tension test: 1.8-2.2N

Interactive Interface: GUI menu interface, easier operation

Battery capacity: 5200mAh Li-battery

Power supply: Power charging adaptor, Input: AC100-240V(50/60HZ), output: DC11-13.5V

Electrode life: More than 3000 ARC, replaced conveniently

Data Interface: USB 2.0

Operating condition: Altitude: 0-5000m, Humidity: 0-95%, Temp: -10°C～+50°C, Wind speed: max 15m/s

Dimension: 156mm(L)x148mm(W)x156mm(H)

Weight: 2.45kg (Including battery)
