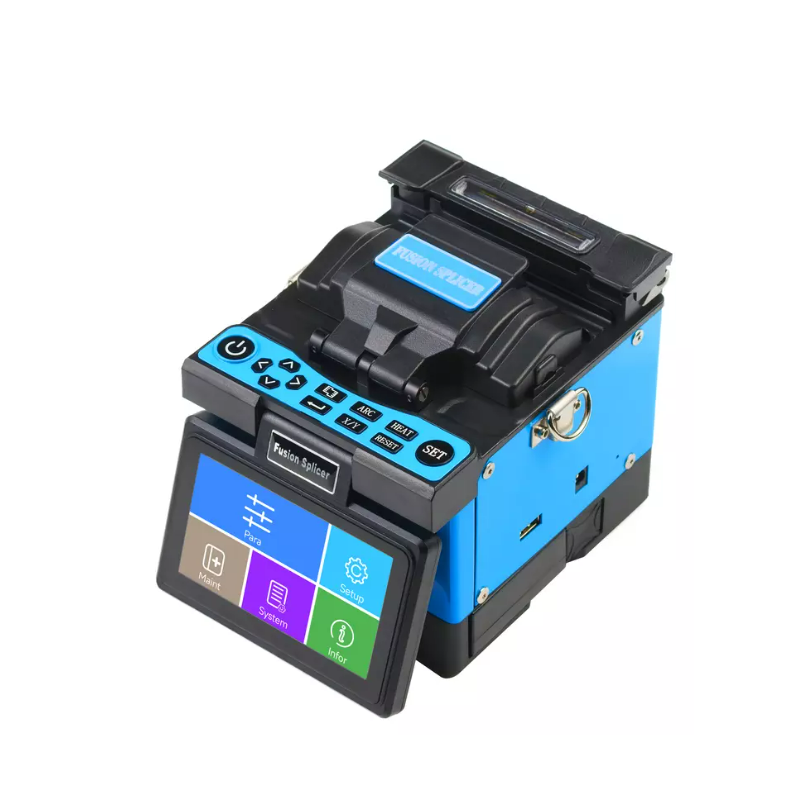

3S Telecom FOFS-40C Fiber Optic Fusion Splicing Machine

Fiber count: Single

Dimension: 149 (L) x 120 (W) x 127 (H) mm, weight: 1.9kgs (battery included)

Applicable fiber: SM(G.652),MM(G.655),DS(G.653),NZ DS(G.655),BI(G.657)

Diameter of fiber: Cladding:80-150μm, coating:160-900μm

Fiber cleaved length: 10-16mm(coating diameter <250μm), 16mm(coating diameter: 250-1000μm)

Typical splicing time: 8s

Tube heating time: 26s

Protection sleeve length: 60mm, 40mm

Storage of splice result: 4000 results

Typical splice loss: SM:0.02dB, MM:0.01 dB, DS:0.04dB, NZ DS:0.04dB, BI:0.02dB (ITU-T Standard)

Return Loss: >60dB

Operating condition: Altitude: 0-5000m, Humidity: 0-95%; Temperature: -20℃～+50℃, Wind speed: max 15m/s

Storage temperature: Humidity: 0-95%, temperature: -40-+80℃

Fiber view magnification: 250X(X or Y view), 125X(X and Y view)

Terminals: USB 2.0 port for data transfer and upgrading software

Electrode life: 4000 ARC discharges

Power supply: Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V; battery capacity:5200mAh
