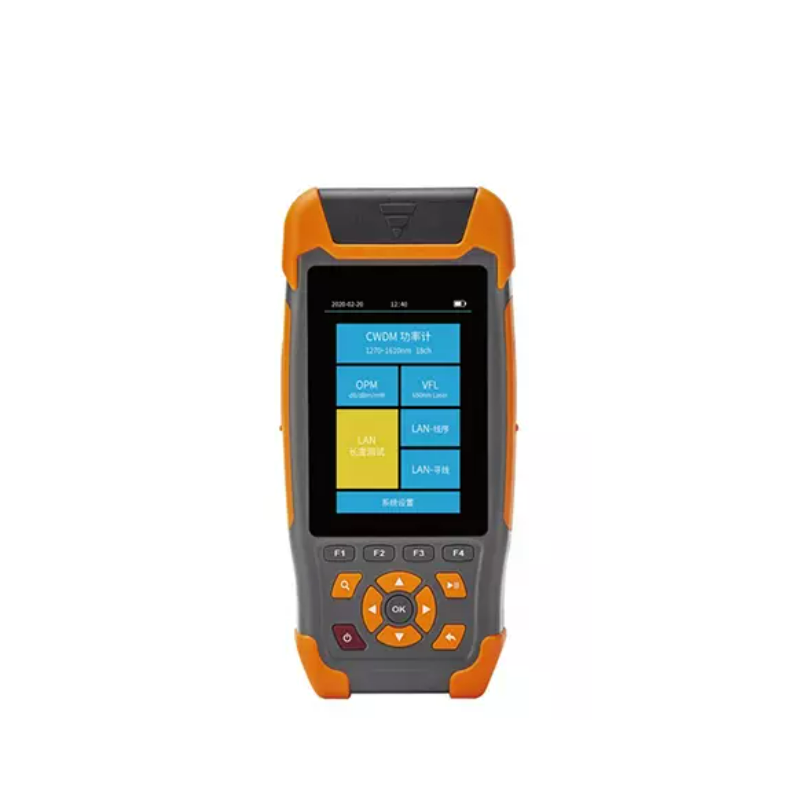

3S Telecom CWDM-18B Fiber Optic Power Meter (1270-1610nm, -70 -+10dBm)

CWDM Optical Power Meter

Detector Type: InGaAs

Fiber Type: SMF 9/125um

Connector: FC/UPC

Wavelength Range: 1270-1610nm

Power Range: -70 -+10dBm

Channel: 18

Channel Spacing: 20nm

Channel Band Pass: ±6.5nm

Uncertainty: ±0.5dB

Resolution: 0.01dB

Return Loss: >45dB

Unit: mW / uW / nW / dBm / dB(RFF)

Data Storage: 1,000 records

Normal Optical Power Meter

Calibration Wavelength: 850/980/1300/1310/1490/1550/1625/1650nm

Power Range: -70 - +10dBm/-50 - +26dBm

Unit: mW / uW / nW / dBm / dB(RFF)

Accuracy: ±0.25dB (5%)

Resolution: 0.01dB

Visual Fault Locator

Wavelength: 650±20nm

Power: 10mW

Mode: CW/1Hz/2Hz

Connector: 2.5mm universal connector

RJ45 Cable Length

Test Distance: 300m

General Information

Display: 3.5 inch TFT LCD display, high resolution 320*480

Data Interface: Micro USB

Power Supply: Lithium battery 3.7V 4000mAh, power adapter 5V DC, 2A

Battery Working Time: >12h

Weight: 350g

Size: 173 x 82 x 37mm

Operation Temperature: -10°C～50°C

Storage Temperature: -40°C～70°C

Relative Humidity: 0 ~ 95% No Condensation
