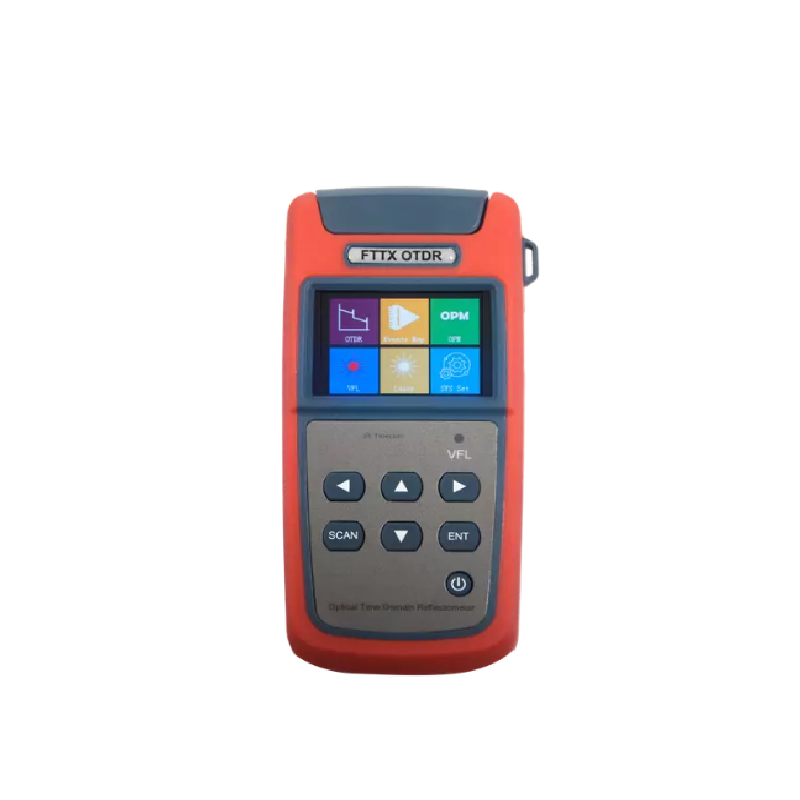

3S Telecom 400MiNi Portable Smart Communication OTDR (1310nm, 22dB)

OTDR

Wavelength: 1310nm

Type of fiber: 9/125um SM Fiber

Connector: SC/APC

Dynamic Range: 22dB

Pulse Width: 5ns~ 8000ns，Auto

Event Dead Zone: 3m

Attenuation Dead Zone: 10m

Optical Power Meter

OPM Measurement Range: -50~+26dBm

OPM Working Wavelength: 850/1300/1310/1490/1550/1625nm

Visual Fallt Locator

VFL Output Power: ≥10mW

Optical Light Source

OLS Wavelength: 1310nm or 1550nm (same as wavelength)

Power Supply: 3pcs of AA Alkaline Battery; Battery Work time: ≥2000 times measure

Save Data:＞500

Work Temperature: -5~40℃

Save Temperature: -10~60℃

Humidity: 0~85%（no condensation）

Net weight: 300g

Packing List: 400MiNi OTDR x1pcs, AA Alkaline Battery x3pcs, USB x1pcs, SC adapter x1pcs, Carry Bag x1pcs, User Manual x1pcs
