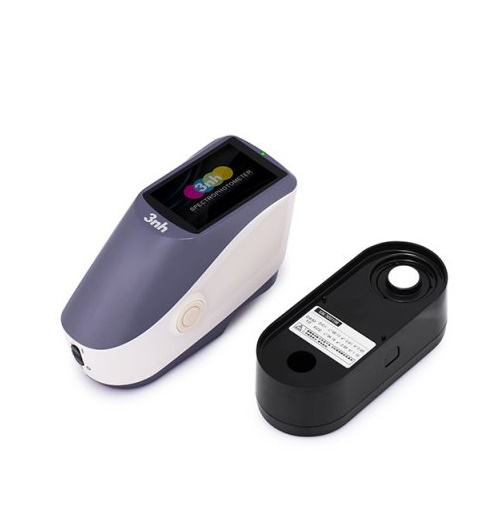

3nh YS3020 Grating Spectrophotometer (400-700nm; 10nm)

Integrating Sphere Size: 48mm

Light Source: Combined LED Light

Spectrophotometric Mode: Concave Grating

Sensor: 256 Image Element Double Array CMOS Image Sensor

Wavelength Range: 400-700nm

Wavelength Interval: 10nm

Semiband Width: 10nm

Measured Reflectance Range: 0-200%

Measuring Aperture: Customized Aperture: 8mm/4mm/1×3mm

Battery: Li-ion battery. 5000 measurements within 8 hours

Dimension: L*W*H=184*77*105mm

Weight: 600g

Illuminant Life Span: 5 years, more than 3 million times measurements

Displayed Data: 3.5-inch

TFT color LCD, Capacitive Touch Screen

Data Port: USB, Bluetooth 4.0 Data Storage: Standard 2000 Pcs, Sample 20000 Pcs

Operating Environment: 0~40℃, 0~85%RH (no condensing),

Altitude < 2000m

Storage Environm

ent: -20~50℃, 0~85%RH (no condensing)

Standard Accessory: Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover

Optional Accessory: Micro Printer, Powder Test Box
