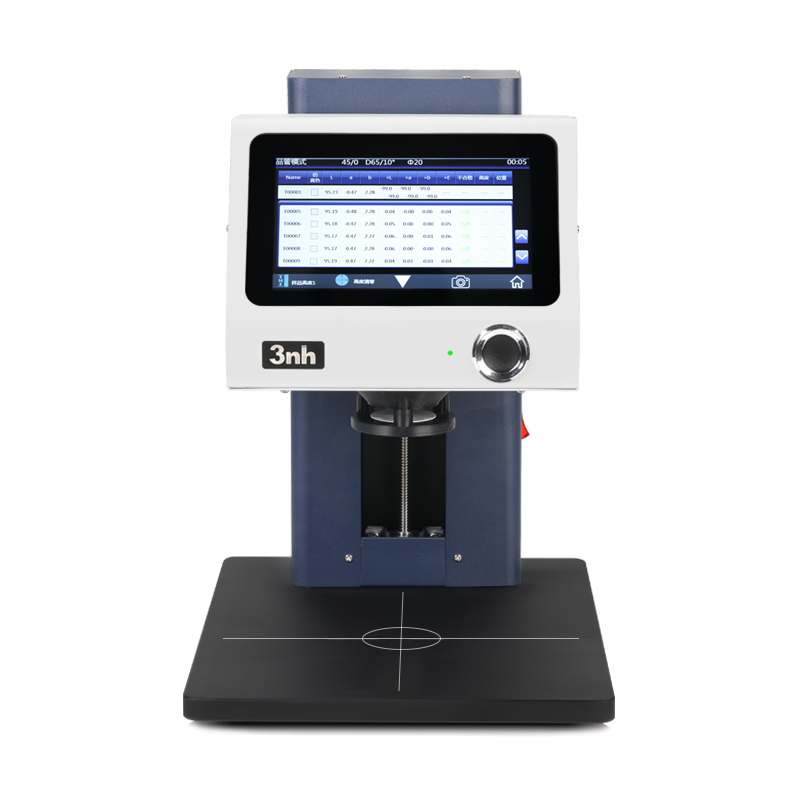

3nh YL4520 Non-contact Benchtop Spectrophotometer (400-700nm; 10nm)

Integrating Sphere Size: Φ48mm

Light Source: Full spectrum LED light

Spectrophotometric Mode: Concave Grating

Sensor: 256 Image Element Double Array CMOS Image Sensor

Wavelength Range: 400~700nm/10nm output

Measured Reflectance Range: 0-200%

Measuring Aperture: Φ20mm

Non-contact Distance: 7.5mm

Sample Height: 0~150mm

Distance Adjustment Method: Manual adjustment(test height can be stored)

Power Supply: DC 24V, 3A Power Adapter

Dimension: 330*250*370mm

Weight: About 10 kg

Illuminant Life Span: 5 years, more than 3 million times measurements

Displayed Data: 7" TFT Capacitive Screen-touch Display

Data Port: USB/RS-232

Data Storage: Standard 1000 Pcs, Sample 30000 Pcs

Operating Environment: 0~40℃, 0~85%RH (no condensing), Altitude < 2000m

Storage Environment: -20~50℃, 0~85%RH (no condensing)

Standard Accessory: Power Adapter, User Manual, USB cable, Standard Calibration Board, Black Calibration Cavity

Datasheet
