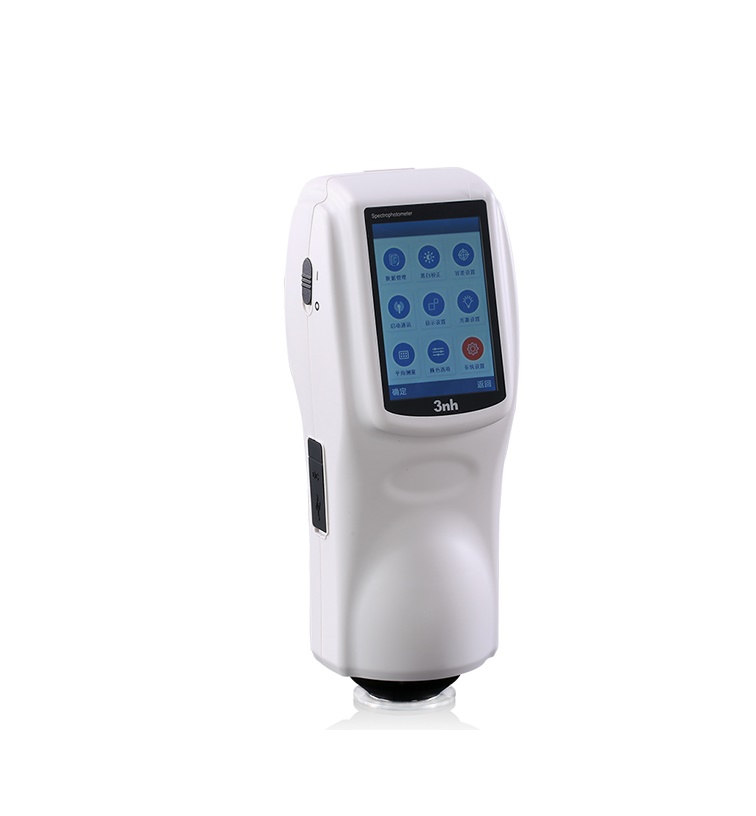

3nh NS820 Portable Spectrophotometer (400~700nm; 10nm)

Integrating Sphere Size: Φ58mm

Light Source: combined LED sources

Sensor: Silicon photodiode array

Wavelength Range: 400~700nm

Wavelength Interval: 10nm

Measured Reflectance Range: 0-200%

Measuring Aperture: Φ4mm

Dimension: L*W*H=90*77*230mm

Weight: 600g

Battery: Li-ion battery. 2800 times within 8 hours

Lamp Life: 5 years, more than 1.6 million measurements

Display Screen: TFT 3.5inch, Capacitive Touch Screen

Interface: USB/RS-232

Data Memory: 1000 Standards, 10000 Samples

Operating Temperature: 0~40℃(32~104°F)

Storage temperature: -20~50℃(-4~122°F)

Standard Accessory: Powder Adapter, Li-ion Battery, User manual, QC software (please download it on our website), USB Line,  White and Black Calibration Cavity, Wristband, dust cover

Optional Accessory: Universal Test Component, Micro Printer, Powder Test Box,Multifunctional test component
