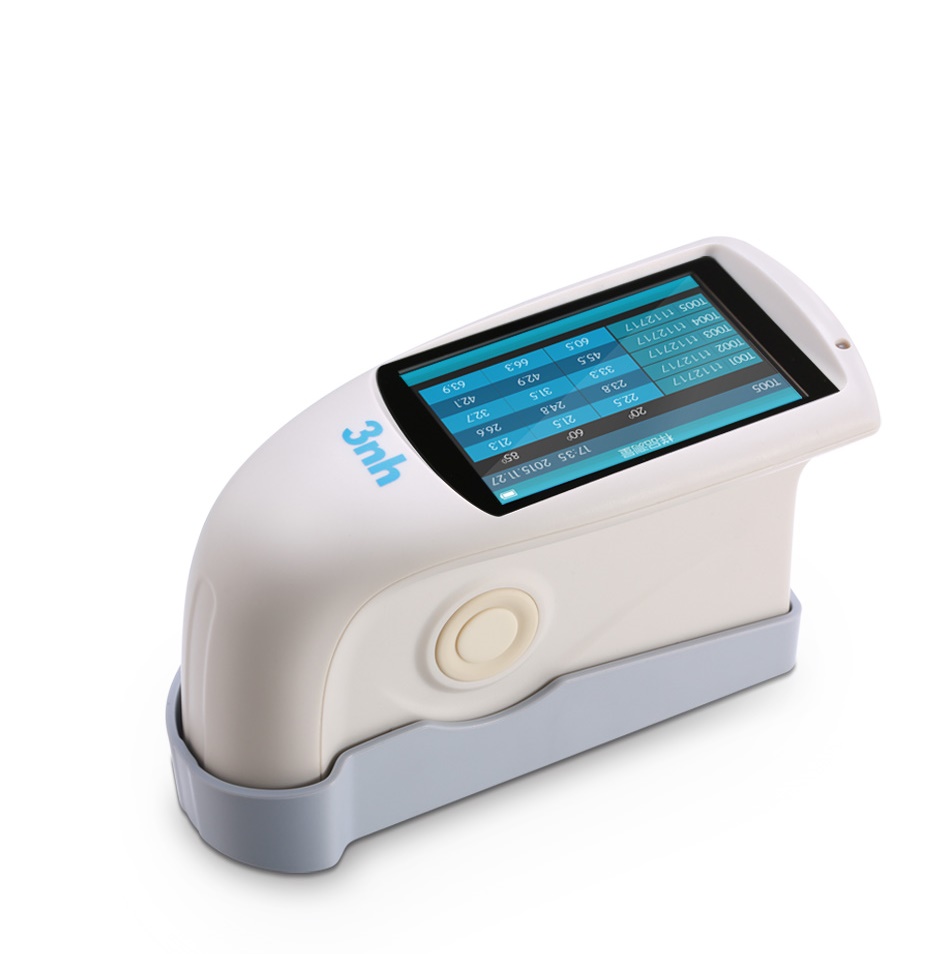

3nh NHG60 Gloss Meter (60°; 0~1000GU)

Measuring Angle: 60° Comply with standard ISO 2813、GB/T 9754、ASTM D 523、ASTM D 2457

Measuring Area: 9X15 mm

Measurement Range: 0~1000GU

Division Value: 0.1GU

Measuring Time: 0.5S

Repeatability: 0-10GU:± 0.1GU; 0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU

Measurement Standard: Conform with JJG696 first grade requirements of gloss meter

Errors: ±1.2 , ± 1.2%

Data Save: Basic mode: 1000, Statistical Mode: 5000, Continuous mode : 5000

Display: TFT 3.5 inch, capacitive touch screen

Size: 160mm*75mm*90mm

Weight: 350g

Battery: 3.7V,3200mAh Li-ion Battery, >10000 times(within 8 hours)

Interface: USB/RS-232

PC Software: GQC6 QC software can printing testing report and with more extended functions

Operation Temperature Range: 0-40℃（32-104° F）

Storage Temperature Range: -20-50℃（-4-122° F）

Humidity Range: < 85% RH, without condensation

Standard Accessories: Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate

Optional Accessories: Miniature printer
