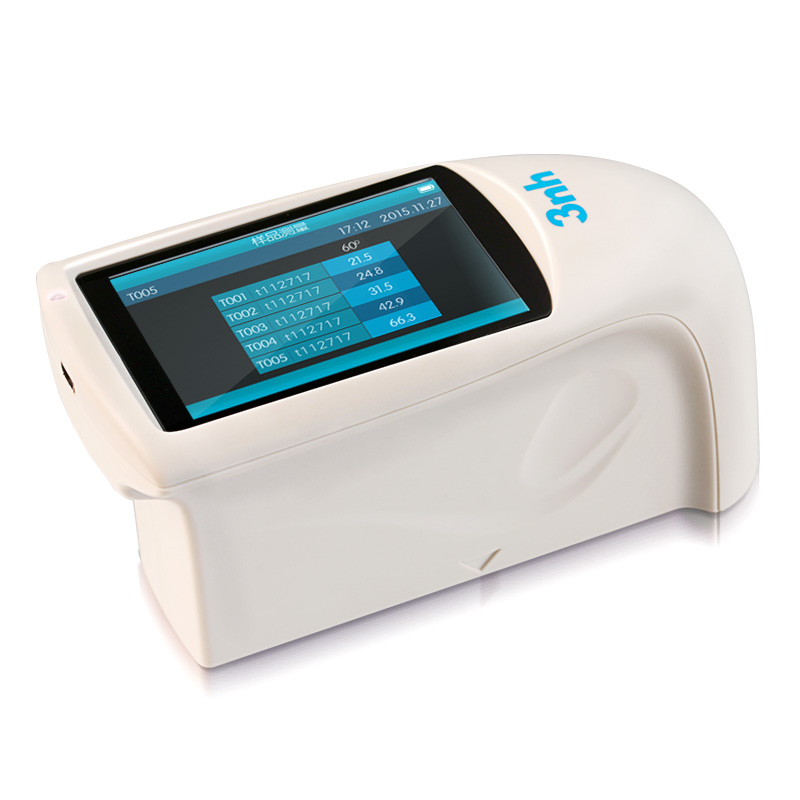

3nh HG60S Economic Gloss Meter (60°: 0~200GU)

Measuring Angle: 60° Comply with standard ISO 2813、GB/T 9754、ASTM D 523、ASTM D 2457

Measuring Area: 9x15 mm

Measurement Range: 0~200GU

Division Value: 1GU

Measuring Time: 0.5s

Repeatability: 0-200GU : ±1GU

Measurement Standard: Conform with JJG696 second grade requirements of gloss meter

Errors: ±1.5 , ± 1.5%

Data Save: Basic mode: 1000

Display: TFT 3.5 inch

Size: 160mm*75mm*90mm

Weight: 350g

Battery: 3200mAh Li-ion Battery, >10000 times(within 8 hours)

Interface: USB/RS-232

PC Software: /

Operation Temperature Range: 0-40℃（32-104° F）

Storage Temperature Range: -20-50℃（-4-122° F）

Humidity Range: < 85% RH, without condensation

Standard Accessories: Power Adapter, USB cable, User Manual, Calibration Plate

Optional Accessories: Miniature printer
