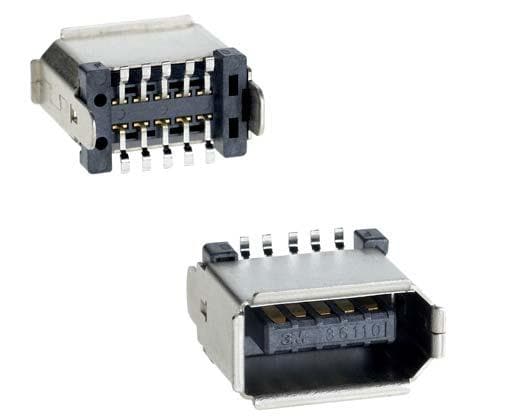

3M Electronic Solutions Division 36110-1110PL SCR Connectors SCR VERT PLUG SURFACE MT
Model36110-1110PL
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Black
Pitch: 2 mm
Gender: Male
Unit Weight: 4.535 g
Current Rating: 1 A
Mounting Angle: Vertical
Mounting Style: SMD/SMT
Voltage Rating: 150 VAC, 200 VDC
Contact Plating: Gold
Number of Ports: 1 Port
Contact Material: Phosphor Bronze
Termination Style: Solder
Flammability Rating: UL 94 V-0
Insulation Material: Liquid Crystal Polymer (LCP)
Number of Positions: 10 Position
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 55 C
