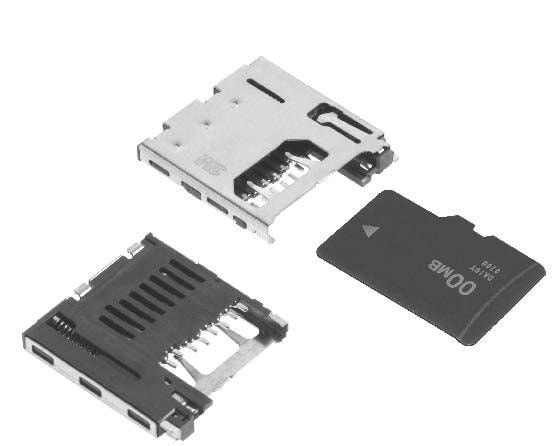

3M Electronic Solutions Division 2908-05WB-MG Card Connectors MICROSD 8P P/P SMT POLARIZED

Color: Black

Pitch: 2.54 mm

Height: 1.85 mm

Length: 15.2 mm

Features: Low profile, card polarization, metal-shielded cover

Card Type: microSD

Orientation: Right Angle

Unit Weight: 1 g

Current Rating: 500 mA

Mounting Style: PCB Mount

Number of Rows: 1 Row

Contact Plating: Gold

Contact Material: Copper Alloy

Housing Material: Thermoplastic (TP)

Termination Style: SMD/SMT

Number of Contacts: 8 Contact

Flammability Rating: UL 94 V-0

Insulation Resistance: 100 MOhms

Insertion - Extraction Style: Push-Push

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 25 C
