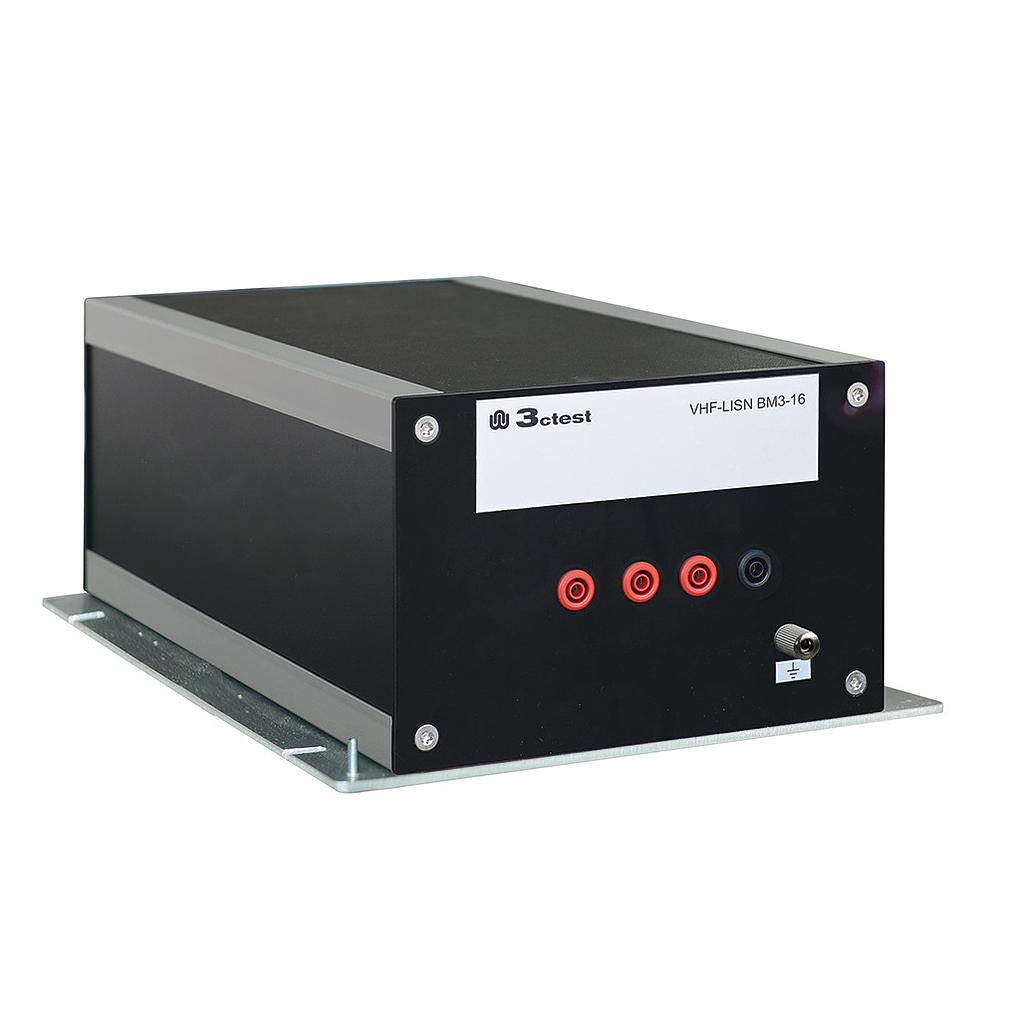

3ctest VHF-LISN BM3-16 Balanced High Frequency Line Impedance Stabilization Network (30 MHz-300 MHz)

- Technical Parameters:

Standard: CISPR16-1-4 Ed.3.2

Frequency Range: 30 MHz-300 MHz

Max. AC Voltage（L-PE): 250 V

Max. DC Voltage（L-PE): 400 V

Max. Current: 16 A

Type of EUT Port: 4 mm Banana(L/N/PE)

Type of AE Port: 4 mm Banana(L/N/PE)

Input Impedance (EUT End, L line-Reference Ground, N line-Reference Ground):

30MHz to 300MHz

50 Ω ± 20%

Phase（EUT End, L line, N line):

30MHz to 108MHz

0 ± 11.5°

108MHz to 300MHz

0 ± 25.0°

Isolation(AE-EUT):

30MHz to 300MHz

>40 dB

- General Parameters:

Dimension: 250 mm (L) ×160 mm (W) ×100 mm（H）

Weight: 4.0 kg

Ambient Temperature: 15–35℃

Relative Humidity: 45%–75%

Atmosphere Press Range: 86 kPa–106 kPa

Datasheet
