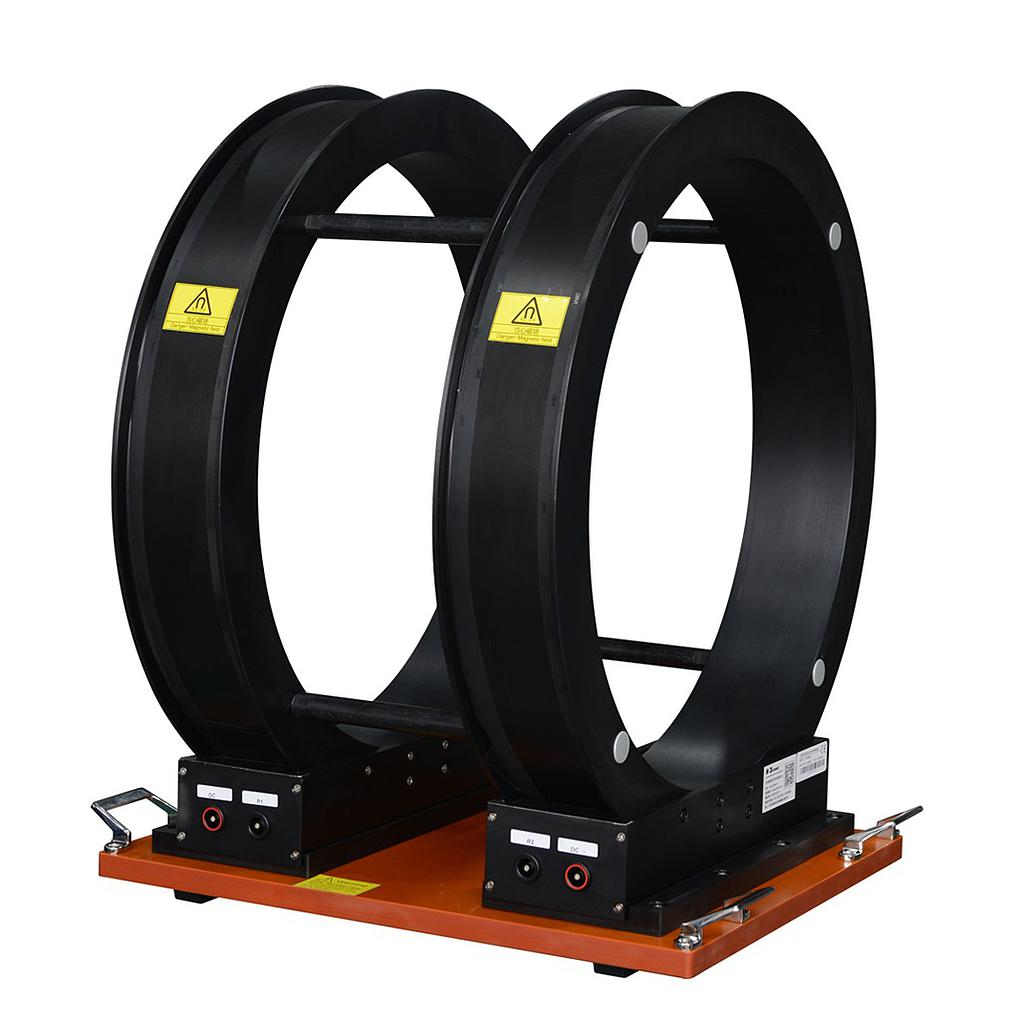

3ctest TYXH 06400 Helmholtz Coil (120 turns)
Manufacturer3ctest(View more products from this manufacturer)
ModelTYXH 06400
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Total Coil Turns: 120 (60×2)
Max. Coil Current: 30 A, 5 min
Standard Current: 20 A, continuous
Max. Magnetic Field Strength: 4260 A/m@30 A, 5 min
Standard Magnetic Field Strength: 2856 A/m@20 A, continuous
Coil Factor: 43.1 dB A/m
Coil Diameter: 600 mm
Frequency Range: DC-30 kHz
Coil Total Inductance: ≤10 mH
DC Resistor: ≤1 Ω
Interface Type: 4 mm banana plug
Working Temperature: 0 ℃ ~ 65 ℃
Weight: 45 kg
