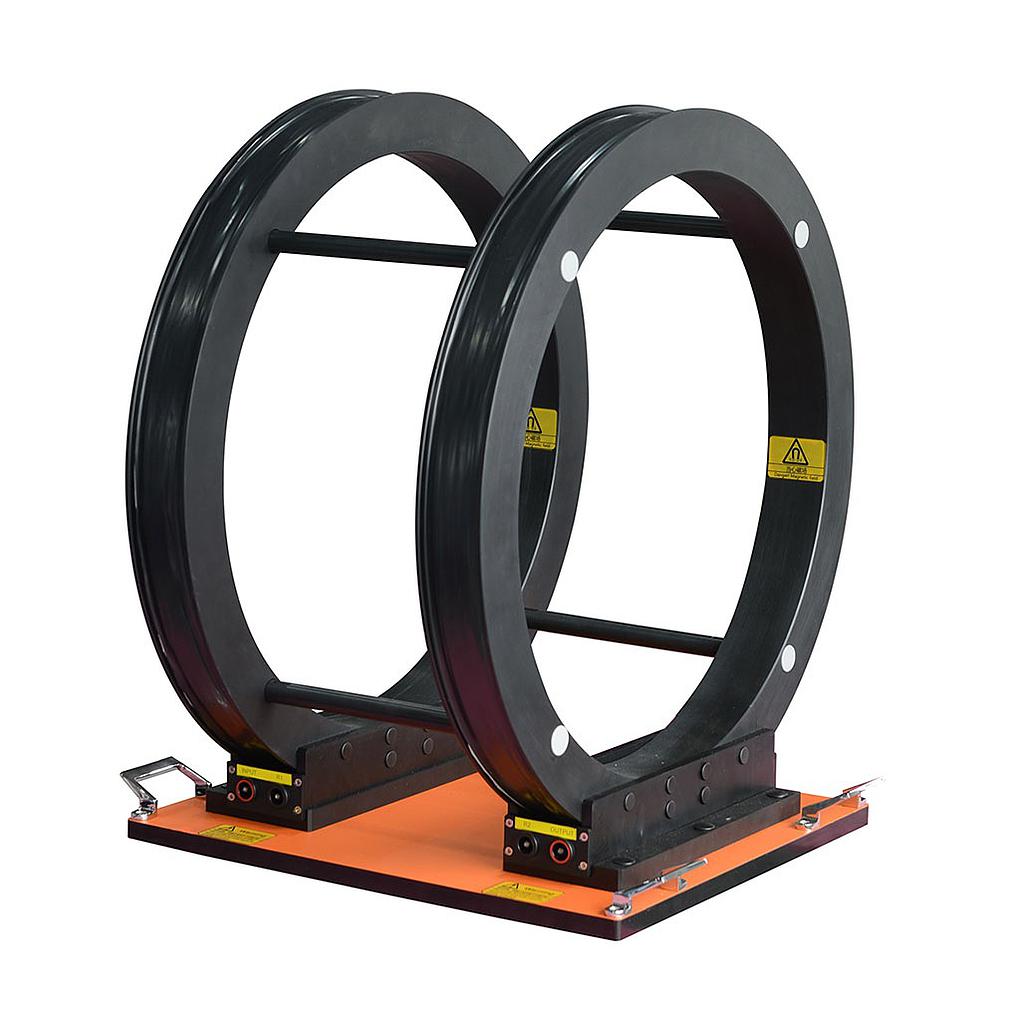

3ctest TYXH 06200 Helmholtz Coil (32 turns)
Manufacturer3ctest(View more products from this manufacturer)
ModelTYXH 06200
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Total Number of Turns: 32（16×2）
Max. Coil Current: 55 A，5 min
Standard Current: 33 A，continuous
Max. Magnetic Field Strength: 2100 A/m@55 A，5 min
Standard Magnetic Strength: 1260 A/m@33 A，continuous
Coil Factor: 31.6 dB/m
Coil Diameter: 600 mm
Frequency Range: DC-500 kHz
Coil Total Inductance: ≤820 μH
DC Resistor: ≤0.15 Ω
Interface Type: 4 mm Banana plug
Operating Temperature: 0 ℃ ~ 65 ℃
Weight: 38 kg
