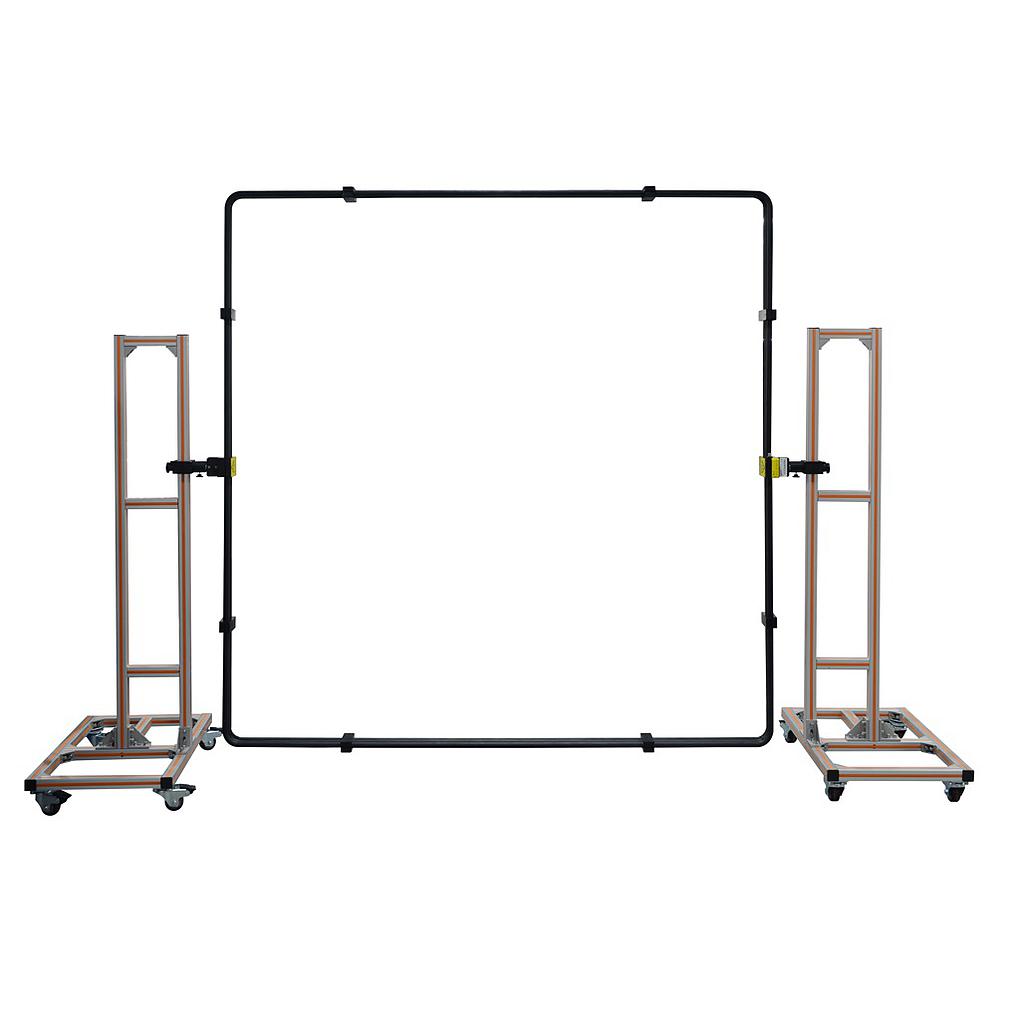

3ctest TCXS223 Power Frequency Magnetic Field Coil (1 A/m ~ 300 A/m, 3 turns)

Magnetic Field Strength:

1 A/m ~ 300 A/m

1.26 μT~ 378 μT

Magnetic Field Direction: 90°/180°

Test Time:

≤100 A/m: continuous for 8 h

＞100 A/m: less than 10 s

Coil Dimension: 2000 mm（L）×2000 mm（W)，3-turn

Ambient Temperature: 15 ℃~35 ℃

Package Dimension: 2440 mm（L）×310 mm（W）× 2140 mm（H）

Weight: Approx. 45 kg

Datasheet
