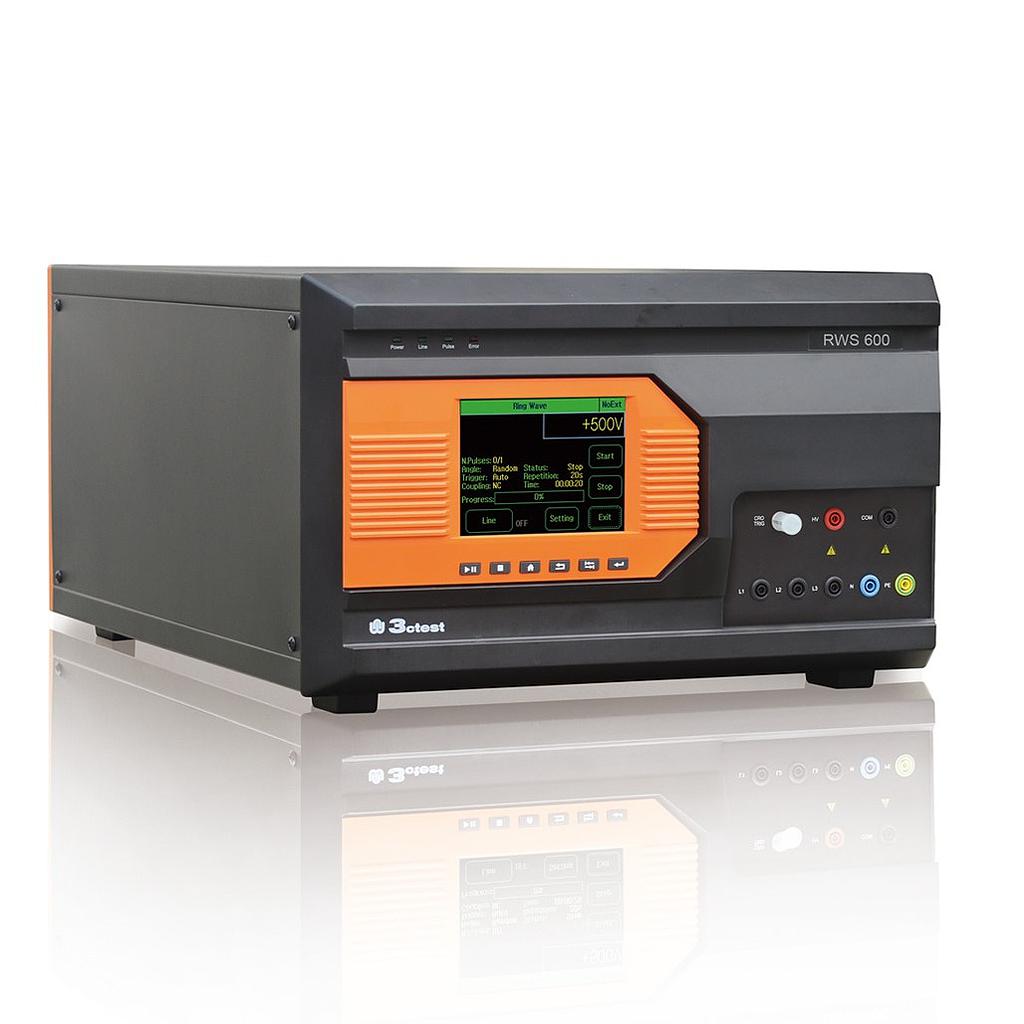

3ctest RWS 600 Ring Wave Simulator

- General data:

Display screen: 5.7 inch TFT touch screen

Power supply: 110V/220V, ±10%, 50/60Hz, default AC 220V 50Hz

Fuse: 6A

Max. Power consumption: 200W

Size: 19 inch/6U

Weight: Approx. 35Kg

Temperature: 15–35℃

Humidity: 45%–75%

Air pressure: 86kPa–106kPa

- Technical parameters:

Output voltage for open circuit（PK1): 0.25 kV–6.0kV ± 10%

Oscillatory frequency for open circuit voltage（1/T): 100 kHz ± 10%

Front time for open circuit voltage（T1,10%-90%): 0.5us ± 30% at PK1

Decay ratio for open circuit voltage:

40%<(PK2)/(PK1)<110%

40%<(PK3)/(PK2)<80%

40%<(PK4)/(PK3)<80%

Front time for shot circuit current (T2, 10%-90%): ≤1us at P1

shot circuit current（P1) for open circuit voltage(PK1) is 6000V: 500A ± 10% at 12Ω; 200A ± 10% at 30Ω

Pulse interval: 1s-99s

Number of test: 1-9999

Output impedance: 12ohm, 30ohm automatic switch

Trigger mode: Automatic, manual and external

Synchronization: 0°-360°, 1° step or random

Network path: Internal L1, L2, L3, N, PE, automatic switch

EUT voltage feature: AC 380V, 16A；Max: AC 450V

Test mode: programmable setup of voltage, coupling path, phase angle and other parameters
