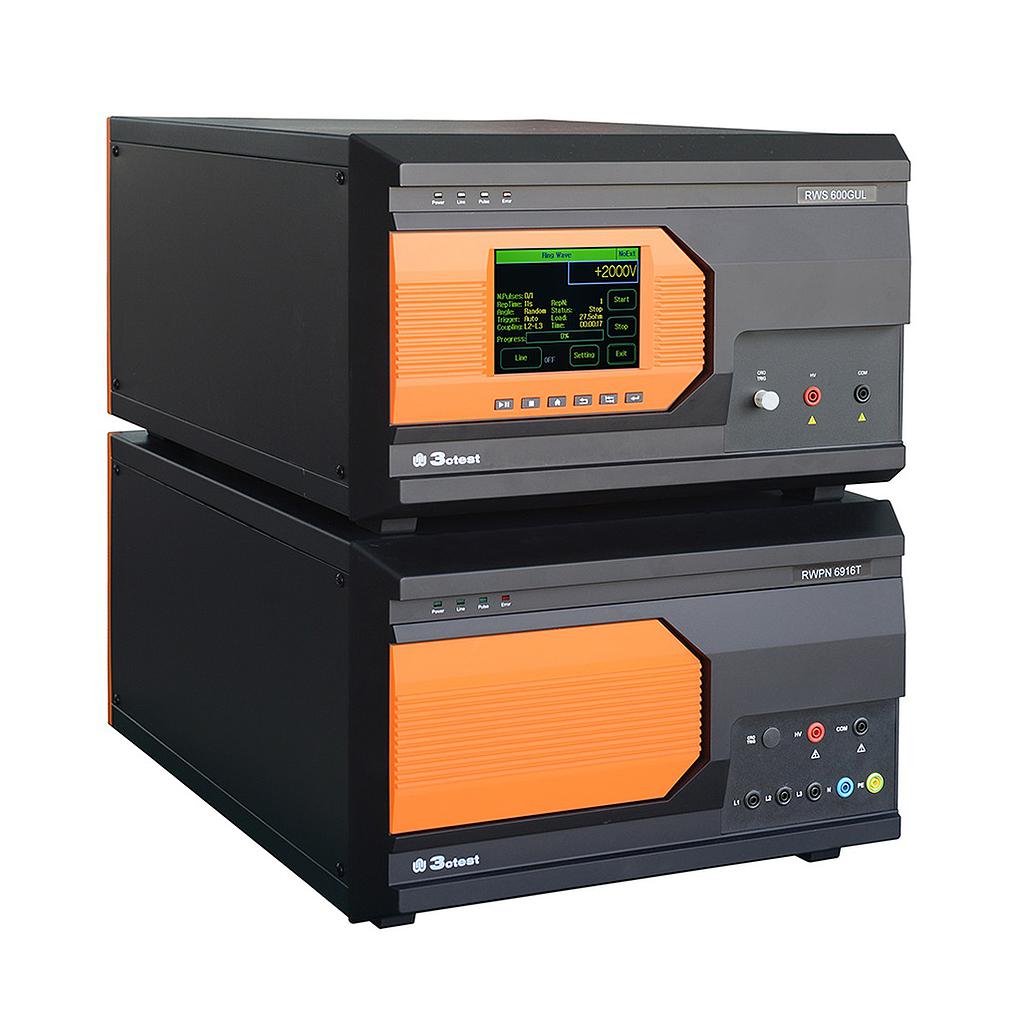

3ctest RWPN 6916TUL Coupling/Decoupling Network for Ring Wave Generator (6 kV; 5~30Ω)

- Technical Parameters:

Test Voltage: Max 6 kV (the actual output depends on the set value of the generator)

Phase Sync.: Any L-L, L-PE at any phase angles between L1, L2, L3, N, PE

Coupling Paths: Any two lines between L1, L2, L3, N, PE

Coupling Path Switching Method: Automatic

Coupling Capacitor: 3 μF

Coupling Resistor: 5Ω, 12Ω, 27.5Ω, 30Ω (use standard types or user-defined, depending on the internal impedance of the generator)

Coupling Attenuation: <2 dB

Residual Pulse Voltage At The EUT Injection Terminal: <15% of test voltage or rated peak voltage of the CDN

- General Parameters:

Operating Power Supply: AC 110 V / 220 V ±10%, 50/60 Hz ±5% (Default setting as AC 220 V, 50 Hz for Mainland China)

Fuse: 6 A

Max Power: 200 W

Auxiliary Port: D-sub 25p

Operating Status Indicators: Front panel LED

Grounding Method: Grounding strap

Dimension: 19”, 6 U

Weight: Approx 30 kg

Operating Temp.: 15℃ - 35℃

Operating Humidity: 45% - 75%

Operating Air Pressure: 86 kPa – 106 kPa
