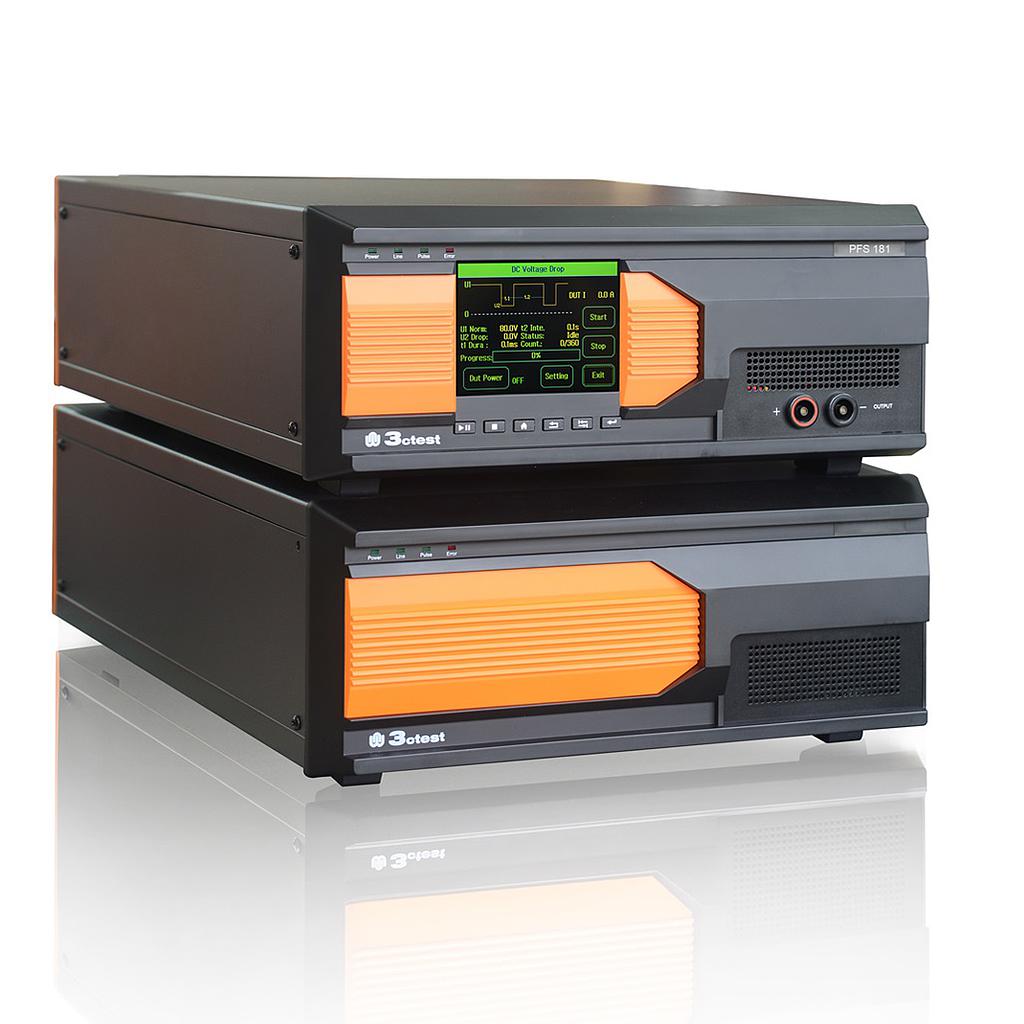

3ctest PFS 181 Vehicle-Mounted Power Failure Simulator (0 – 100 V, 0.1 V)

- Technical Parameters:

Rated Voltage: 0 – 100 V, 0.1 V step

Voltage Dips / Surge Voltage: 0 – 100 V, 0.1 V step

Voltage Dips / Surge Time: 0.1 ms – 59.999 s

Voltage Rise / Fall Time: 0.1 ms – 10 s, adjustable (the min. depends on the test voltage)

Upper/Lower Overshoot of Output Voltage: < 10% of voltage variation (when load impedance of the generator is 100 Ω)

Time Interval: 0.1s – 60 s

Measuring Accuracy Current: 1% ± 0.1 A

Max Output Current (Steady State): See Optional Models

No. of Tests: 1 – 9,999

No. of Ripple: < 1% of rated output voltage

Over-Current Protection Mode: Set arbitrarily from 1A to max. value of current

Load Adjustment Rate: <5% (rate of change of the voltage with the load, 0 to rated current)

Output Impedance for Interruption: >100 kΩ

- General Parameters:

Display: 5.7” TFT touch screen

Operating Power Supply:

8U equipment: 220 V

50 / 60 Hz, ±10%

22U equipment: none

Auxiliary working power: AC 380 V

Fuse: 6 A (8U equipment)

Max Power: 300 W (main control part)

Dimension: 19”, 4 U x 2 pcs

WeightApprox: 40 kg

Operating Temp.: 15℃ - 35 ℃

Operating Humidity: 45% - 75%

Operating Air Pressure: 86 kPa – 106 kPa
