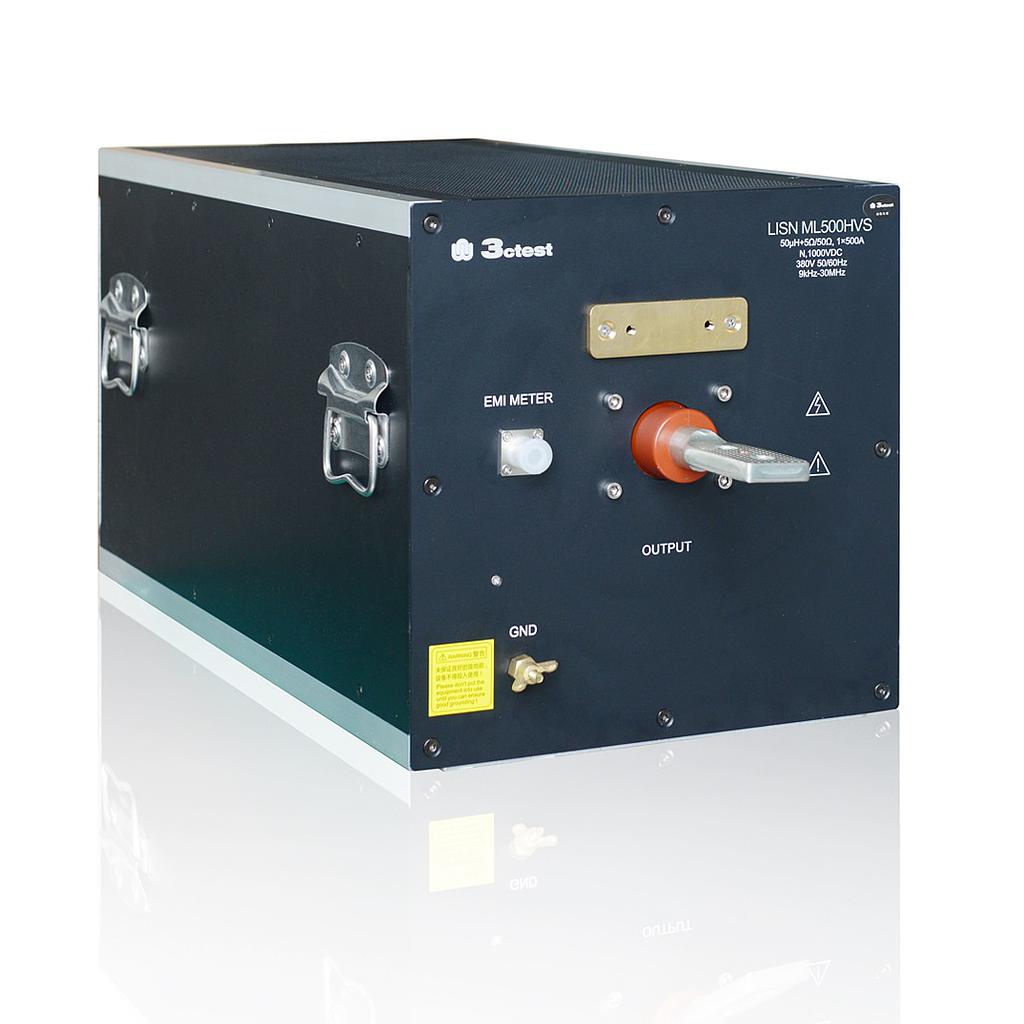

3ctest LISN ML500HVS Line Impedance Stabilization Network (9 kHz~30 MHz)

- Technical Parameters:

Test Voltage (Vmax): 1000 V DC, 380 V 50 Hz/60Hz

Test Current（Imax): 500 A

Test Terminal: Type N

Inductance: 50 μH

Impedance: 50 μH+5 Ω‖50 Ω

Coupling Capacitor: 0.25 μF

Impedance Frequency Range: 9 kHz-30 MHz

- General Parameters:

Power supply: AC 110/220 V, ±10%, 50 Hz/60 Hz (±5%) (Default AC 220 V 50 Hz in mainland China)

Dimension: 310 mm*310 mm*870 mm (L*W*H)

Ambient Temperature: 15 ℃~ 35 ℃

Relative Humidity: 45% ~ 75%

Weight: Approx. 55 kg
