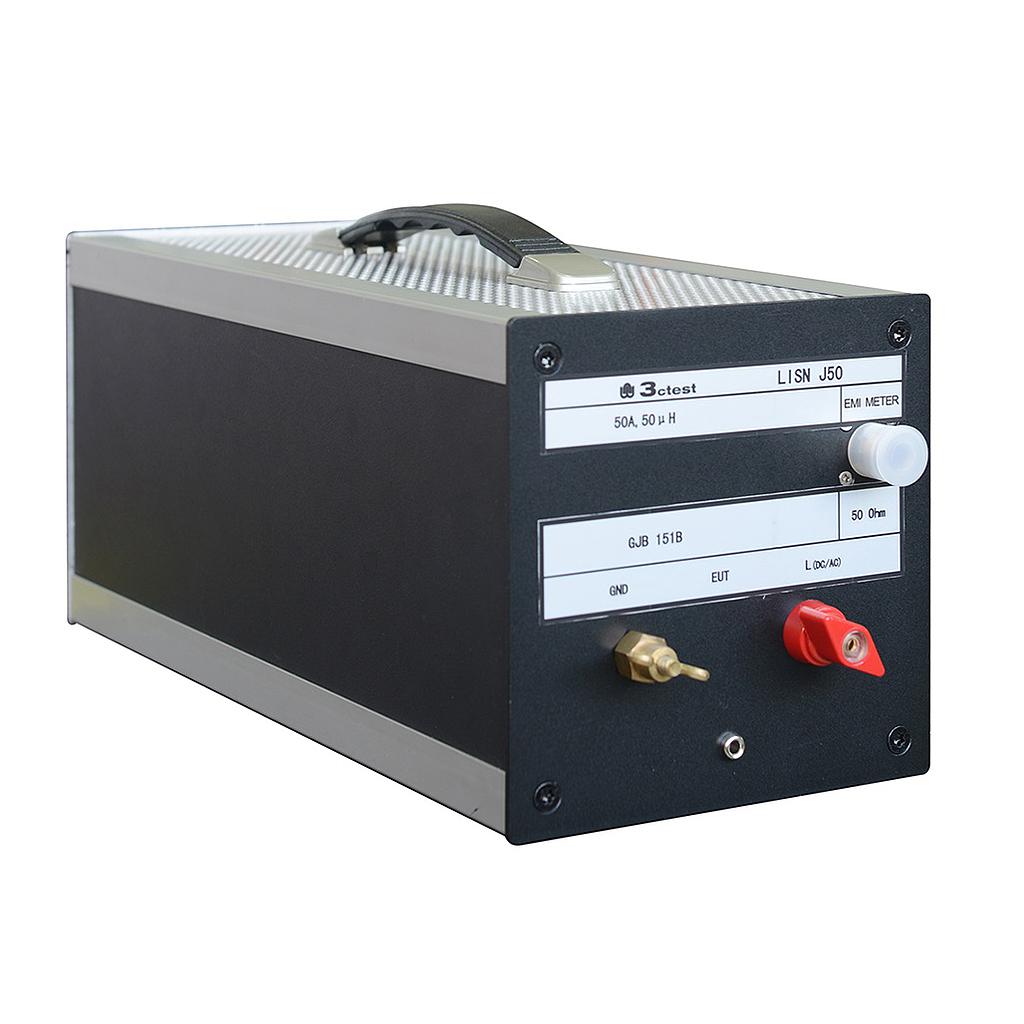

3ctest LISN J50 Line Impedance Stabilization Network (9 kHz~30 MHz)

- Technical Parameters:

Standard:

GJB151B-2013

MIL-STD-461E-1999

Test Voltage (Vmax):

500 V DC

250 V 50/60 Hz

135 V 400 Hz

Test Current (Imax): 50 A

Transient Max. Current: 75 A

Test Terminal: N Type

Inductance: 50 μH

Coupling Capacitor: 0.25 μF

Impedance Frequency Scope: 9 KHz-30 MHz

- General Parameters:

Cabinet Dimension: 360 mm (L)×160 mm (W) ×160 mm (H)

Weight: Approx. 4 KG

Ambient Temperature: 15℃ - 35℃

Relative Humidity: 45% - 75%

Atmosphere Pressure Range: 86 kPa – 106 kPa
