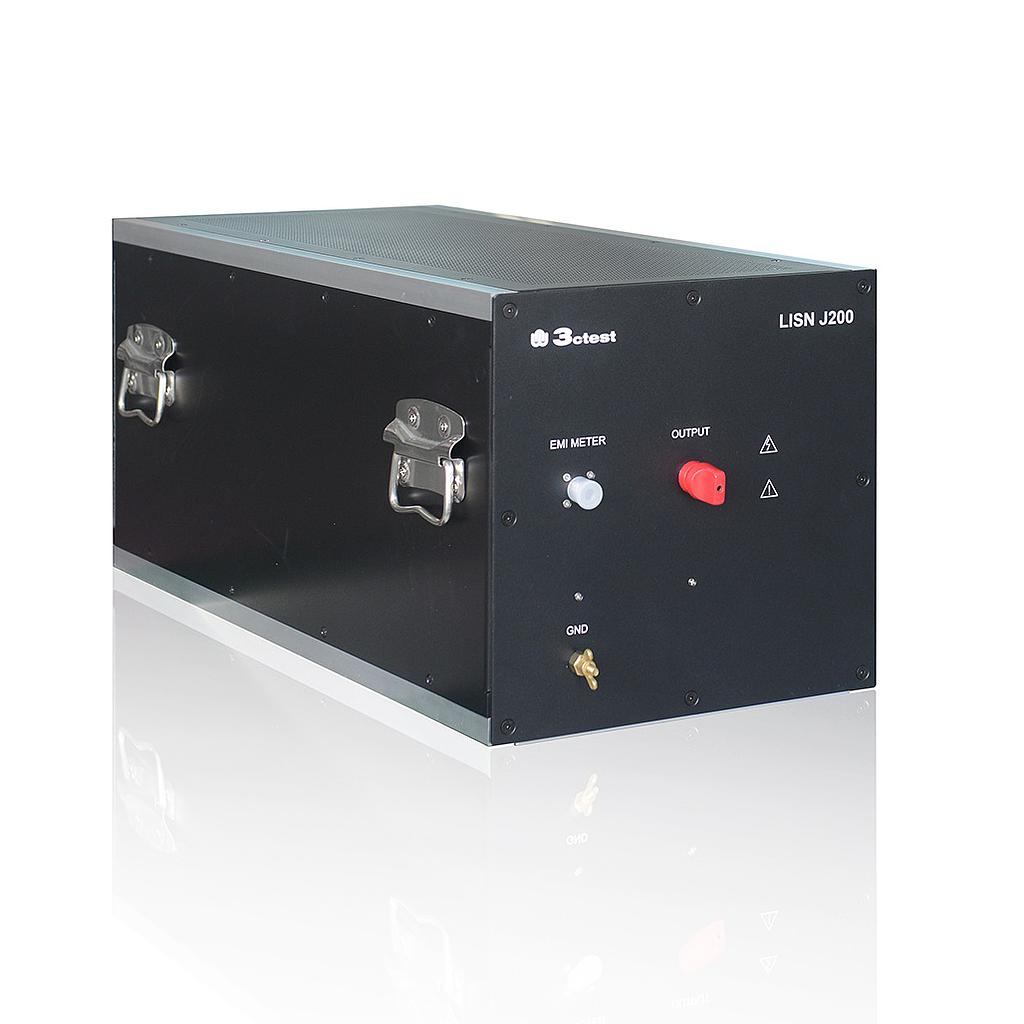

3ctest LISN J200 Line Impedance Stabilization Network (9 kHz~30 MHz)
Manufacturer3ctest(View more products from this manufacturer)
ModelLISN J200
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
- Technical Parameters:
Standard: GJB151B (2013) MIL-STD-461E (1999)
Test Voltage (Vmax): 500VDC, 270V
50 Hz /60Hz,135V 400Hz
Test Current(Imax): 200A
Transient. Current: Max.300A
Inductance Temperature Rise（ΔT): Approx. 80℃（200A 2h）
Test Terminal: Type N
Inductance: 50μH
Coupling Capacitor: 0.25μF
Impedance Frequency Scope: 9KHz-30MHz
- General Parameters:
Cabinet Dimension: 310mm(L)×310mm(W) ×600mm(H)
Weight: Approx. 30kg
Ambient Temperature: 15℃-35℃
Relative Humidity: 45% - 75%
Atmosphere Pressure Range: 86kPa – 106kPa
